Sony DWT-B03R Digital Wireless Mini Bodypack Transmitter with OLED Display
Sony DWT-B03R Digital Wireless Mini Bodypack Transmitter with OLED Display and Cross Remote Function
Small, lightweight, and robust magnesium body
27 percent smaller than its DWT-B01N predecessor
Very high-quality wireless audio
Advanced Sony codec design assures superb audio quality, with a high dynamic range of more than 106 dB, plus a wide frequency response of 20 Hz - 22 kHz and excellent transient response.
Low-latency audio
Advanced Sony codec design reduces audio latency to as little as 1.2msec
DWT-B03R and DWR-R03D total delay with codec mode 2 and analog output
Rain, sweat, and spray proof
Ideal for musical, film production, or outdoor operation, the DWT-B03R features a tough magnesium body with a moisture-resistant housing gasket and splash-proof connector that resists rain, sweat, and spray.
IPX4/IPX5 rating based on standard testing by Sony.
Long battery life

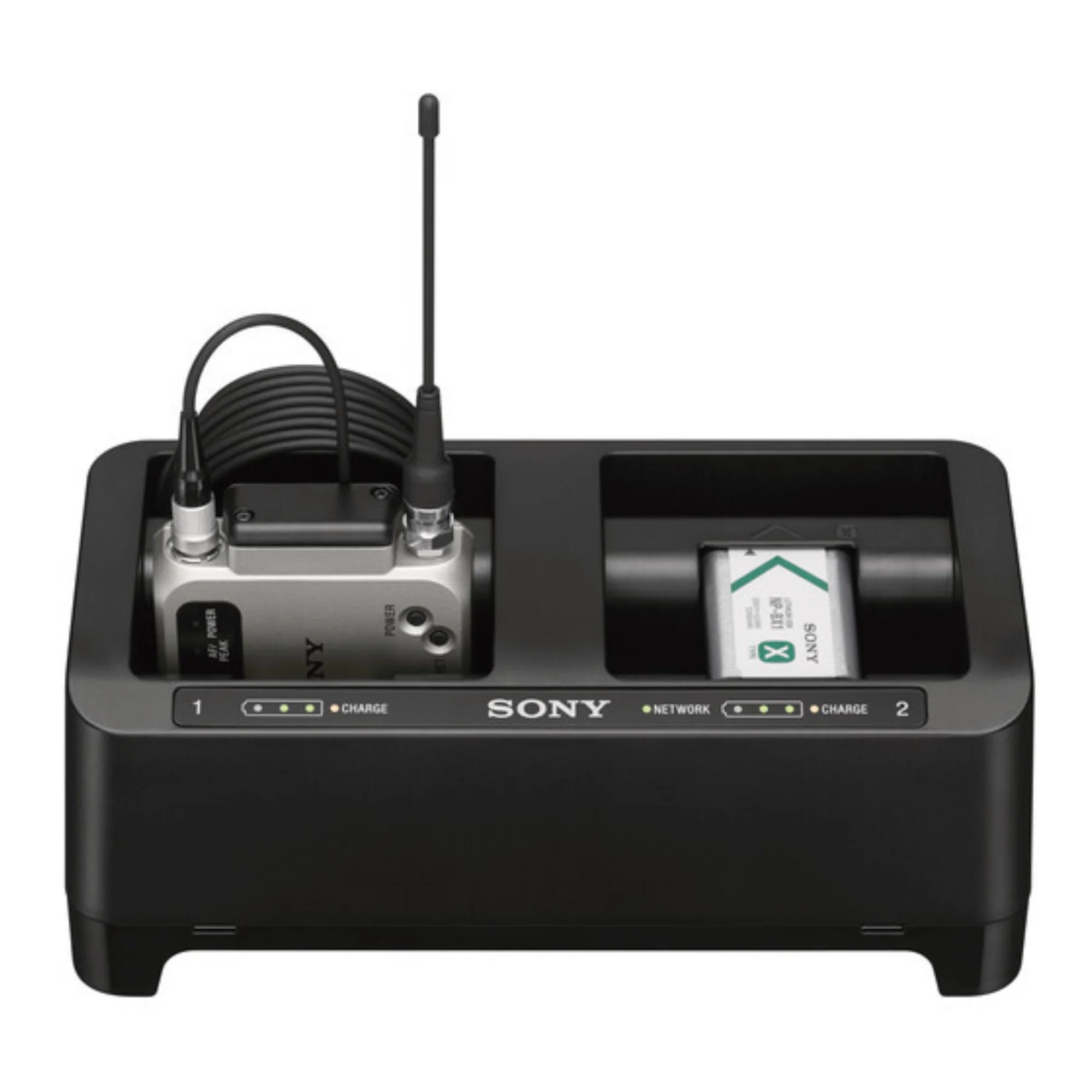

Perform for longer with the high-capacity rechargeable NP-BX1 Li-ion battery (approx. 7 hours). The DWT-B03R is compatible with the optional BC-DWX1 Dual Charger.
148MHz wideband
Contributes to the reduction of equipment and the burden of maintenance.
depends on version
High-density multi-channel operation
Ideal for large-scale productions, the DWT-B03R supports high-density simultaneous multi-channel operation: 375 kHz spacing accommodates up to 21 channels per 8 MHz TV band or up to 16 simultaneous channels per 6 MHz TV band.
AES 256bit encryption
For secure, encrypted transmission
Easy, versatile remote control
The DWT-B03R is compatible with Sony's Wireless Studio control software for PC (Version 5.0 or later). Up to 82 transmitters can be controlled using the Cross Remote function and RMU-01 remote control unit (available separately).
Selectable RF output power
RF output power level is selectable (2mW/10mW/25mW) to prioritise stable multi-channel or long distance operation.
OLED display
The easy-to-read OLED display gives confirmation of channel number, RF signal status, user name, user group and lock status.
Phase reverse mode
It can change the audio phase through the menu.
User setting memory
Settings can be easily stored in the memory of DWT-B03R.
Setting lock
Transmitter settings can be locked to prevent accidental operation during performance.
Transmitter/receiver identifying function
Paired transmitters/receivers are identified by the blinking display.
Small 3-pin connector with lock
