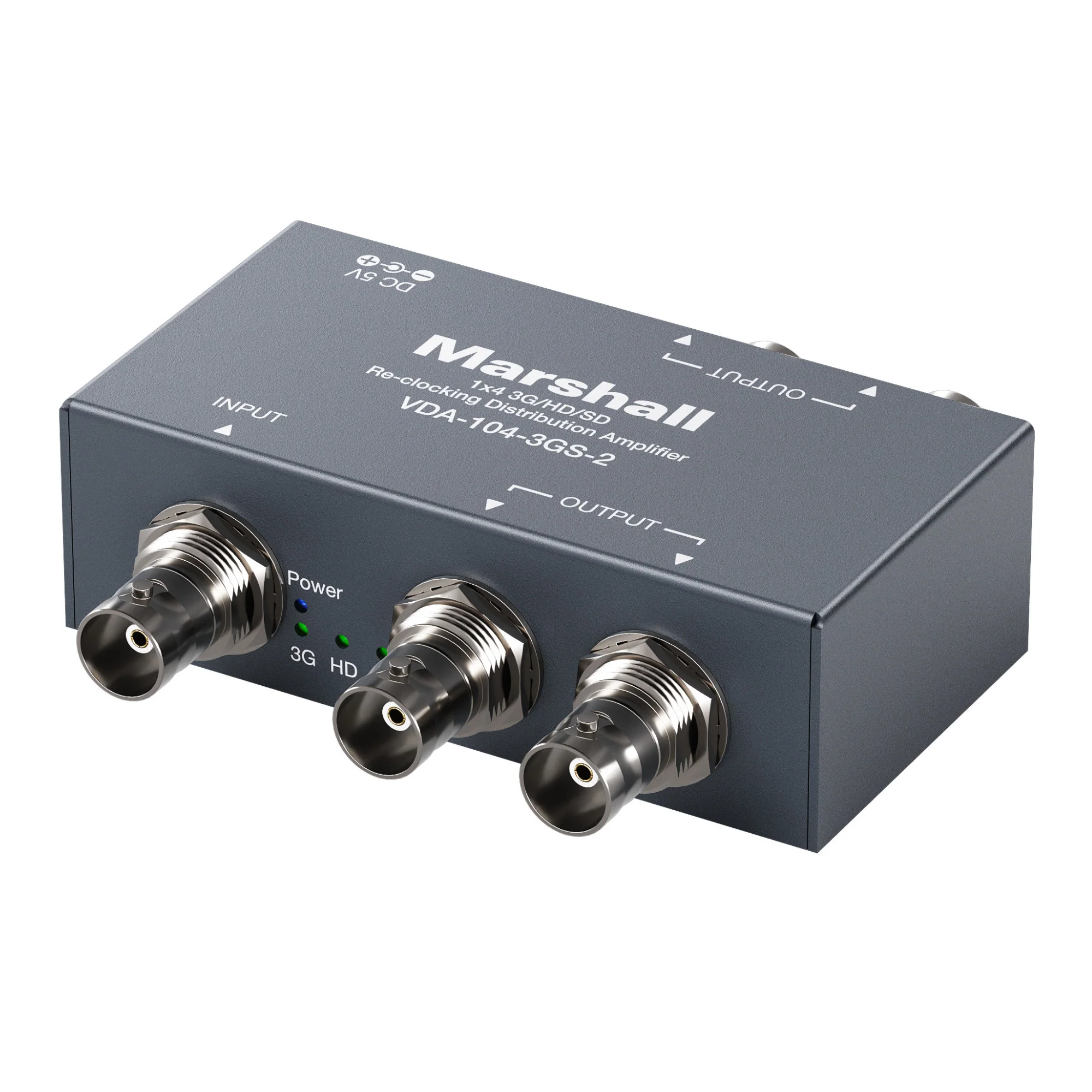

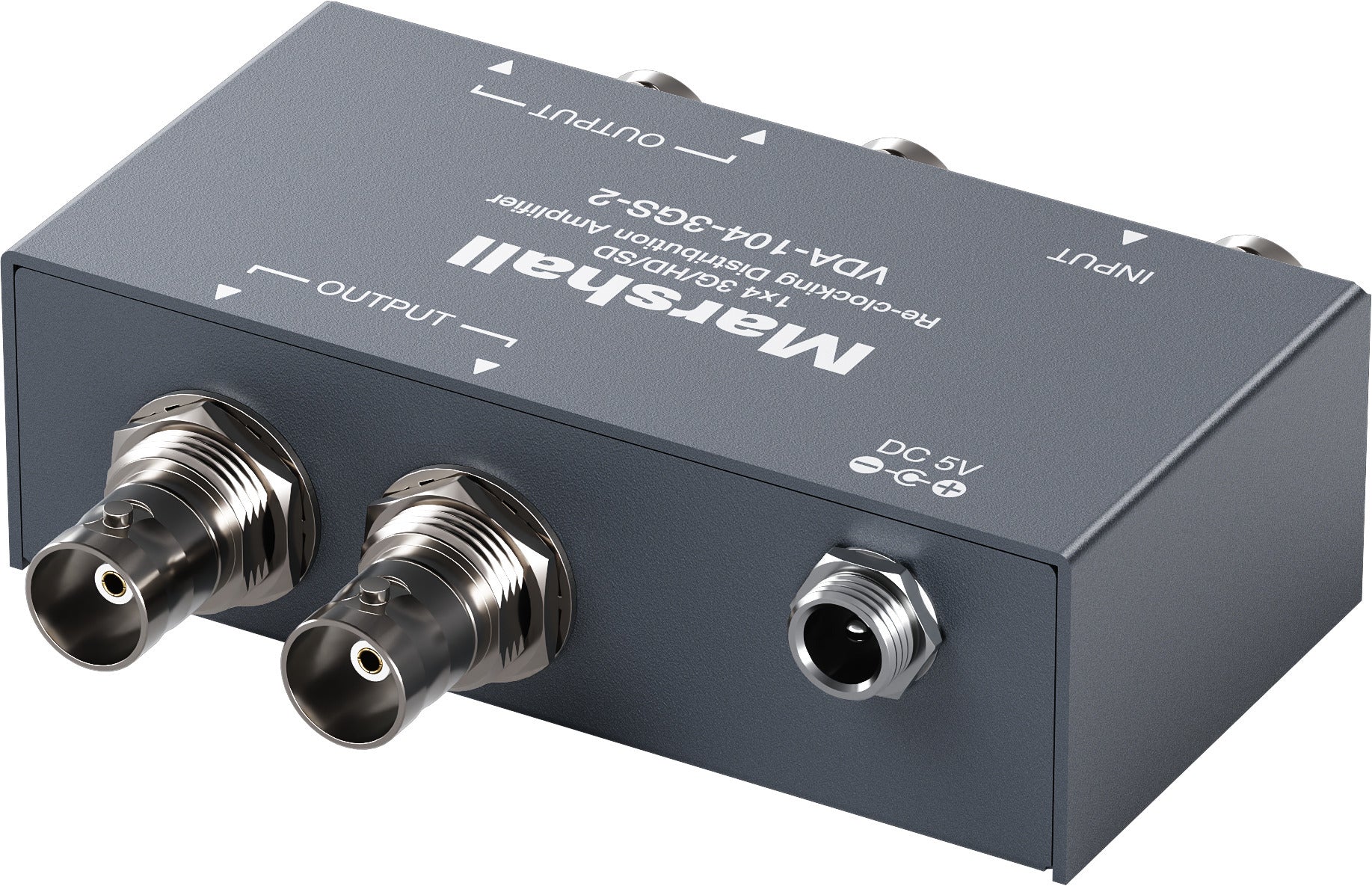

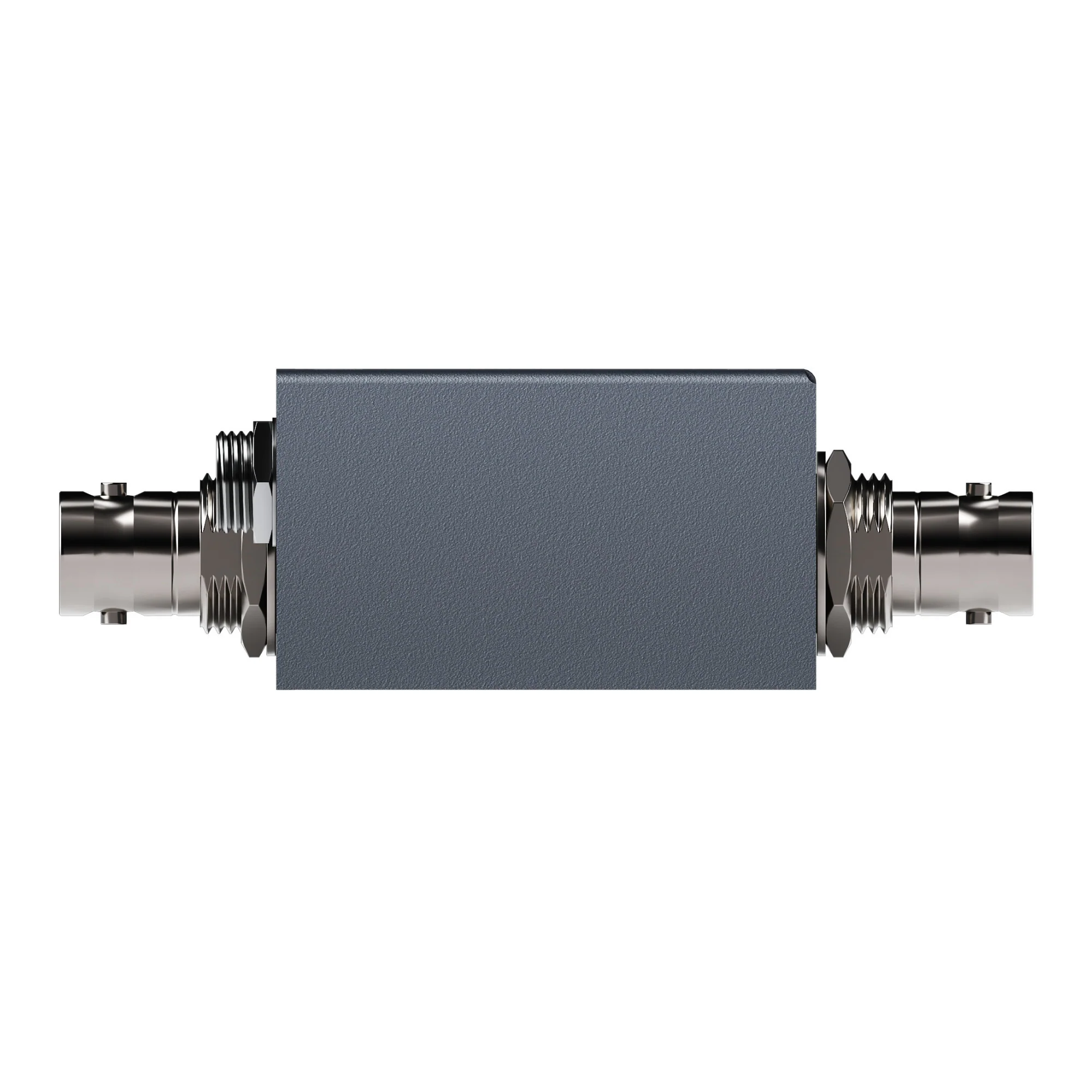

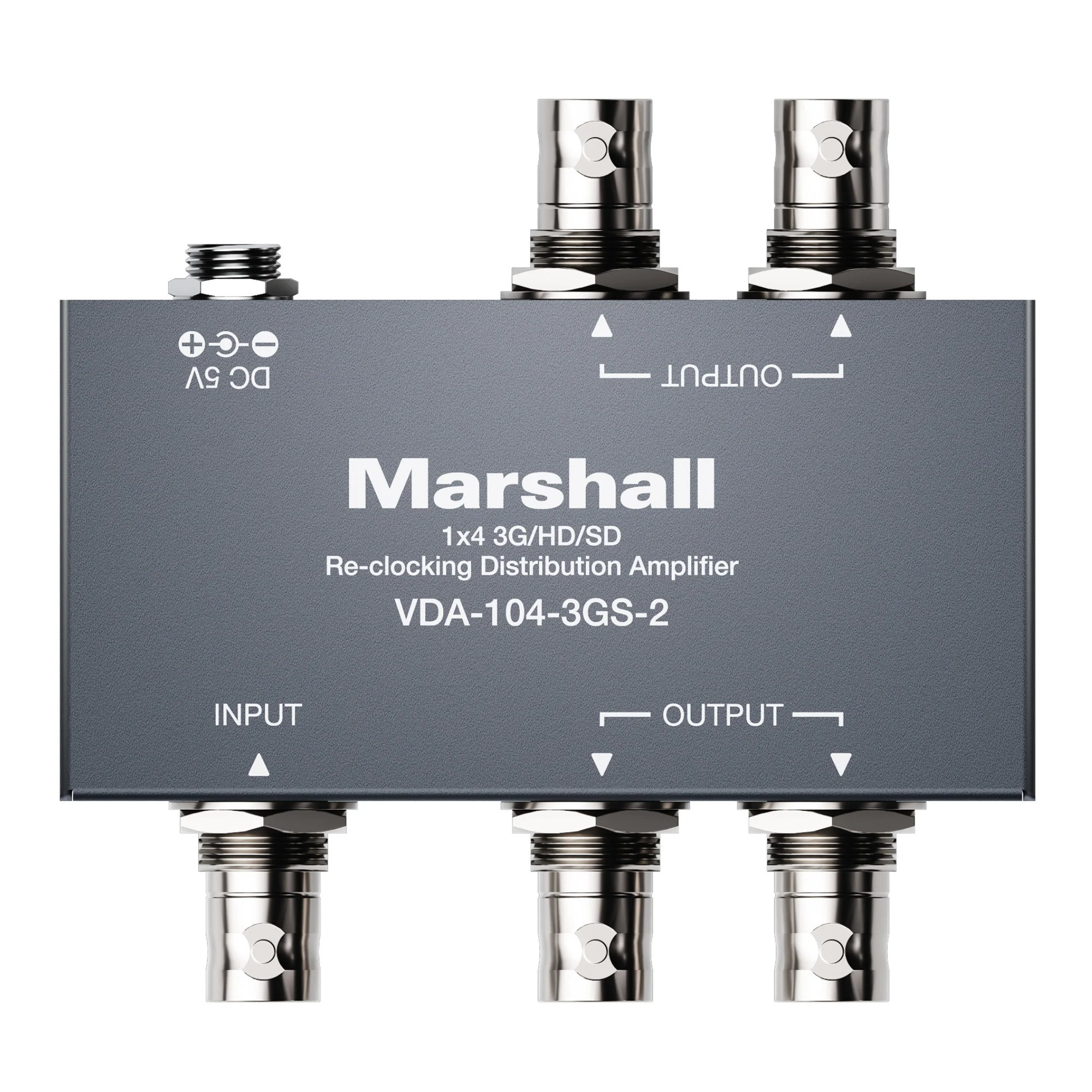

Marshall Electronics VDA-104-3GS-2 1x4 3G/HD/SD-SDI Reclocking Distribution Amplifier

The VDA-104-3GS provides reclocking distribution of an SDI video input signal to four SDI outputs. The input type, whether SDI, HD SDI, or 3G SDI, is auto-detected and displayed via LED indicators.

• Supports 270Mb/s, 1.485Gb/s, and 2.97Gb/s data rates
• Supported video formats:
• SD: 480i59.94 NTSC, 576i50 PAL
• HD: 720p24, 25, 30, 50, 59.94, and 60
•             1080i50, 59.94, and 60
•             1080p24, 25, and 30
• 3G: 1080p50, 59.94, and 60. Supports Level A and B
• 2K: 2048x1080p24 and 30
• Passes all ancillary data
• Reclocking function reshapes the signal to improve transmission distance
• Video format LED indication
• Provides automatic input cable equalization up to 300m (1000ft) and SD, 150m (500ft) andHD/3G
• Reclocking function reshapes the signal to improve transmission distance
• Compact metal housing
