Marshall Electronics 3G-SDI/HDMI/USB 3.0/IP PTZ Camera with 20x Optical Zoom
Marshall Electronics 3G-SDI/HDMI/USB 3.0/IP PTZ Camera with 20x Optical Zoom (Black)
Crisp Full-HD Video Output
The CV620-BI2/WI2 cameras are built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i, and 1280x720p.
Versatile Camera Position
The CV620-BI2/WI2 cameras are equipped with synchronous pan, tilt, and zoom motors with various speed adjustments for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.
Easy I/O and Control

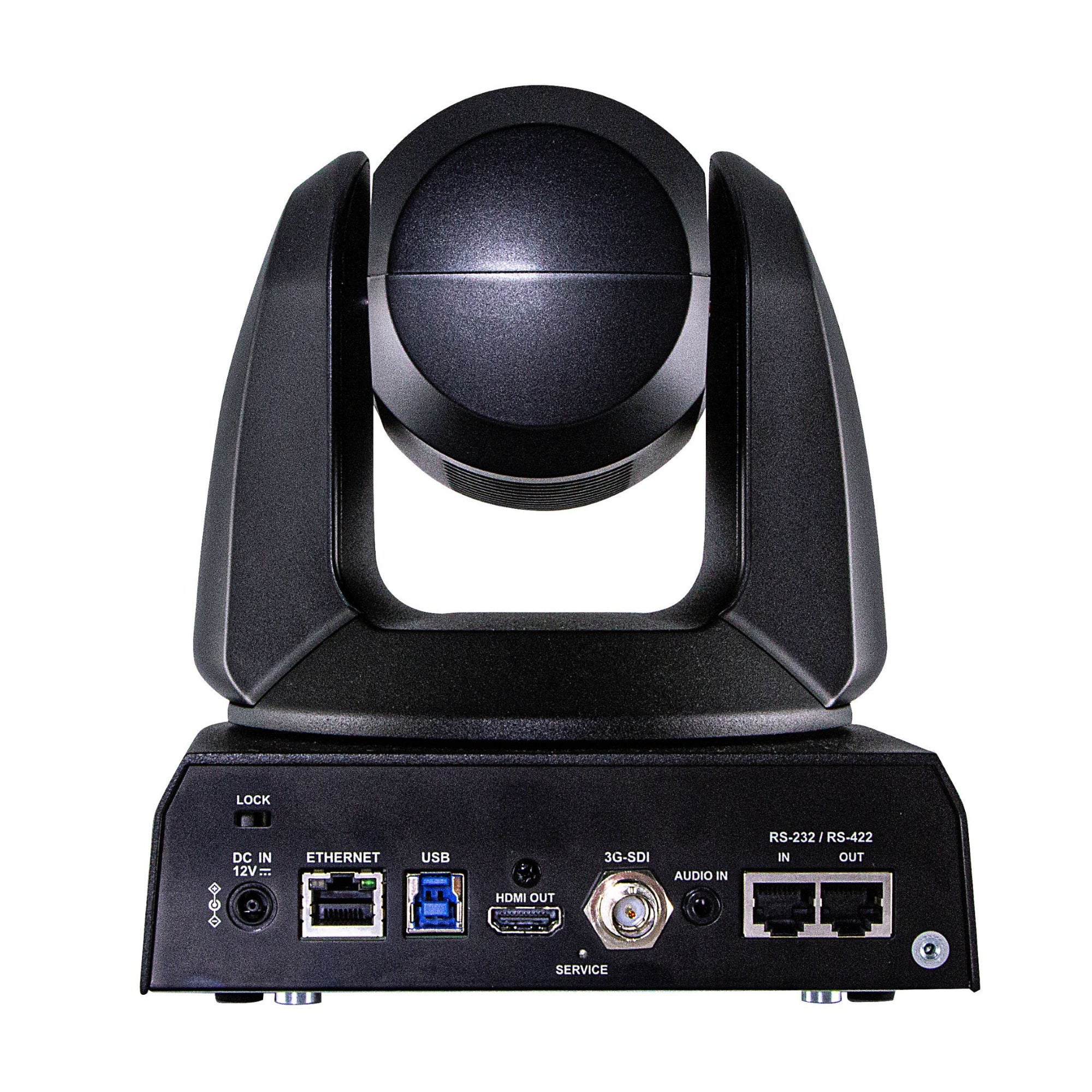

Simultaneous IP, 3GSDI, USB, and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, an easy one-cable to camera setup via IP Ethernet cable for control, video, audio, tally, and PoE+ (power).
Flexible Control Sources
Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-300 or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.
Features
- 2 Megapixel Full-HD Sensor (Sony 1/2.8in)
- 20x Optical zoom (5.3 mm~110 mm) starting at 60 degree H.AOV
- 340-degree pan and 120-degree tilt range with various PT selectable speeds
- 3GSDI, HDMI, USB, and IP (H.264) available outputs
- IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
- Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
- 60, 59.94, 50, 29.97, 25 frames per second
- 3.5mm TRS Stereo Audio (Mic/Line)
- 12V Power cable included (16W max) or PoE+ (18W max)
- Operating Temp: 0 to 40 degrees, Storage Temp: -20 to 60 degrees
- Free-D protocol support and CGI protocol commands
More Images
Marshall Electronics 3G-SDI/HDMI/USB 3.0/IP PTZ Camera with 20x Optical Zoom
Marshall Electronics 3G-SDI/HDMI/USB 3.0/IP PTZ Camera with 20x Optical Zoom (Black)
Crisp Full-HD Video Output
The CV620-BI2/WI2 cameras are built around a professional-grade, 2-Megapixel 1/2.8-inch Sony sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p60fps, 1920x1080i, and 1280x720p.
Versatile Camera Position
The CV620-BI2/WI2 cameras are equipped with synchronous pan, tilt, and zoom motors with various speed adjustments for smooth and silent camera movements during operation. A 20X optical zoom block provides flexibility from 5.3mm to 110mm, maintaining image crispness in wide and tight shots.
Easy I/O and Control
Simultaneous IP, 3GSDI, USB, and HDMI outputs with command options of Visca over IP, RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows. Also, an easy one-cable to camera setup via IP Ethernet cable for control, video, audio, tally, and PoE+ (power).
Flexible Control Sources
Marshall IP PTZ Cameras are setup to be controlled from IR remote (included), VS-PTC-300 or VS-PTC-200 controllers, Video Management Software (VMS), Software GUI through web, OBS plugins/docks, vMix and other 3rd party software/hardware control decks.
Features
- 2 Megapixel Full-HD Sensor (Sony 1/2.8in)
- 20x Optical zoom (5.3 mm~110 mm) starting at 60 degree H.AOV
- 340-degree pan and 120-degree tilt range with various PT selectable speeds
- 3GSDI, HDMI, USB, and IP (H.264) available outputs
- IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
- Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
- 60, 59.94, 50, 29.97, 25 frames per second
- 3.5mm TRS Stereo Audio (Mic/Line)
- 12V Power cable included (16W max) or PoE+ (18W max)
- Operating Temp: 0 to 40 degrees, Storage Temp: -20 to 60 degrees
- Free-D protocol support and CGI protocol commands
