Marshall Electronics ARDM61-BT-DB Digital Audio Monitor with Dolby Module
The Marshall Electronics ARDM61-BT-DB is an active, multichannel rackmount digital audio monitoring system in a 1-RU chassis featuring a 10-inch LCD touchscreen. This configuration includes a pre-installed Dolby CAT 1100 decoder module; this allows you to hear Dolby encoded audio on either SDI or AES inputs. The system is ready for installation in tight spaces in TV stations, broadcast trucks, house-of-worship facilities, and transfer stations where powerful monitoring is required.
The front panel features high-powered stereo speakers, capable of 100 dB output levels along with a 1/4-inch headphone jack, volume control, and a full-color LCD touchscreen. The touchscreen displays up to 64 channels vertically or can be switched to 96-step, high-precision horizontal bars; it also offers a live video preview monitor.

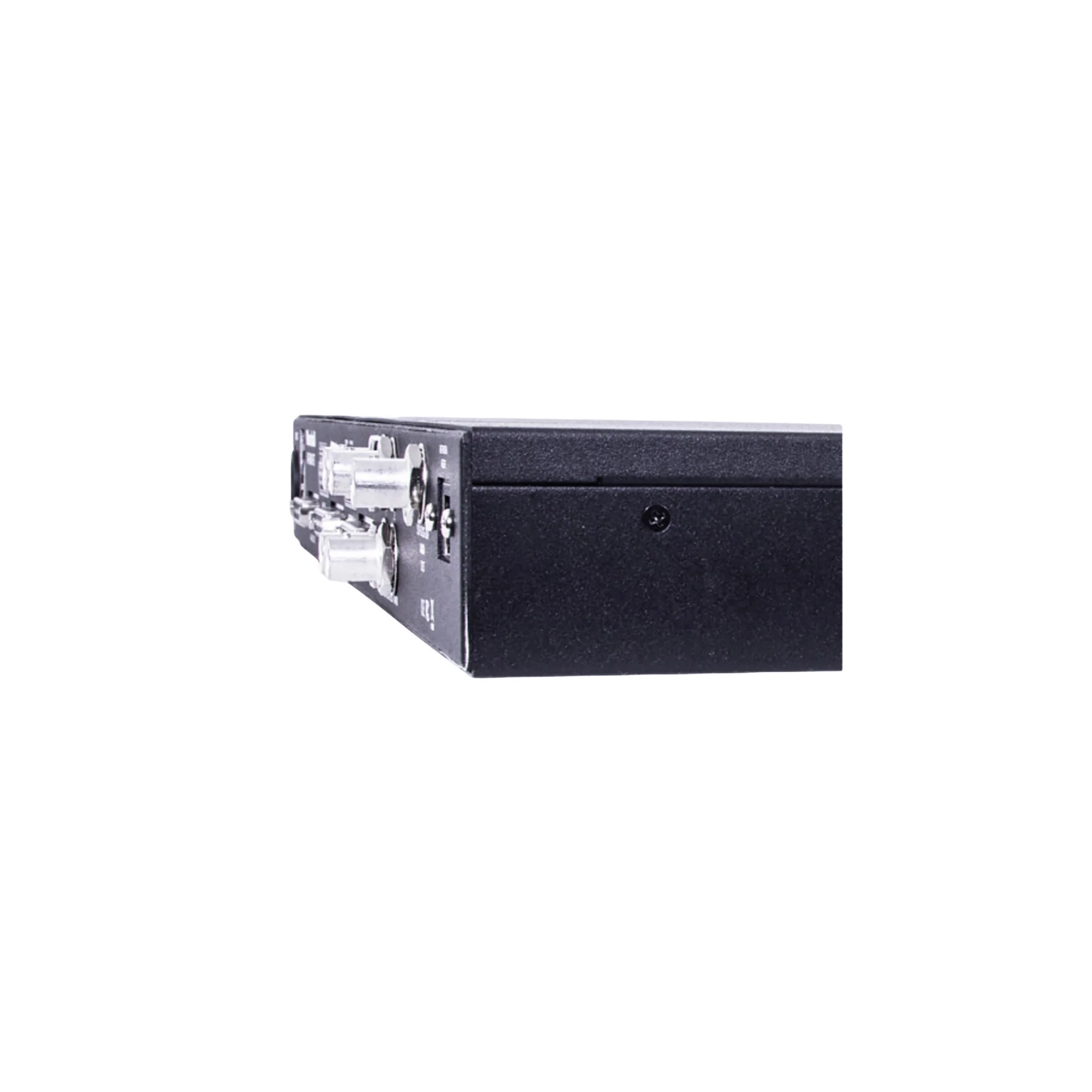

On the back of the ARDM61-BT-DB are two dedicated, MADI-compatible 3G-SDI inputs with loop-through, four AES stereo inputs and outputs on D-sub connectors as well as eight analog inputs and outputs on D-sub connectors. Two RJ45 ports support Ethernet networking, and a 24 VDC universal power supply is included.
Features
- 10-inch LCD Intuitive Touchscreen Panel displays up to 64 channels in vertical or 2 detailed channels in horizontal display
- Built-in Dolby Decoder card displays channels with Dolby encoded audio
- The decoder module also permits listening to the Dolby encoded audio, when the tracks are selected
- All normal listening selections such as Mono, Stereo, LRC, MIX, etc. can be applied to Dolby decoded audio
- LKFS display mode averages all channels in the current mix
- Built-in live preview monitor for SDI inputs
- Accepts inputs from multiple signal types
- High-powered stereo speakers (up to 100 dB output)
- Push-to-mute functionality
- Two dedicated 3GSDI inputs with loop-through (MADI compatible)
- 4 AES stereo inputs (8 channels) and outputs on 25-pin DSub connectors
- 8 analog inputs and outputs on 25-pin DSub connectors
Original: $5,423.79
-65%$5,423.79
$1,898.33More Images
