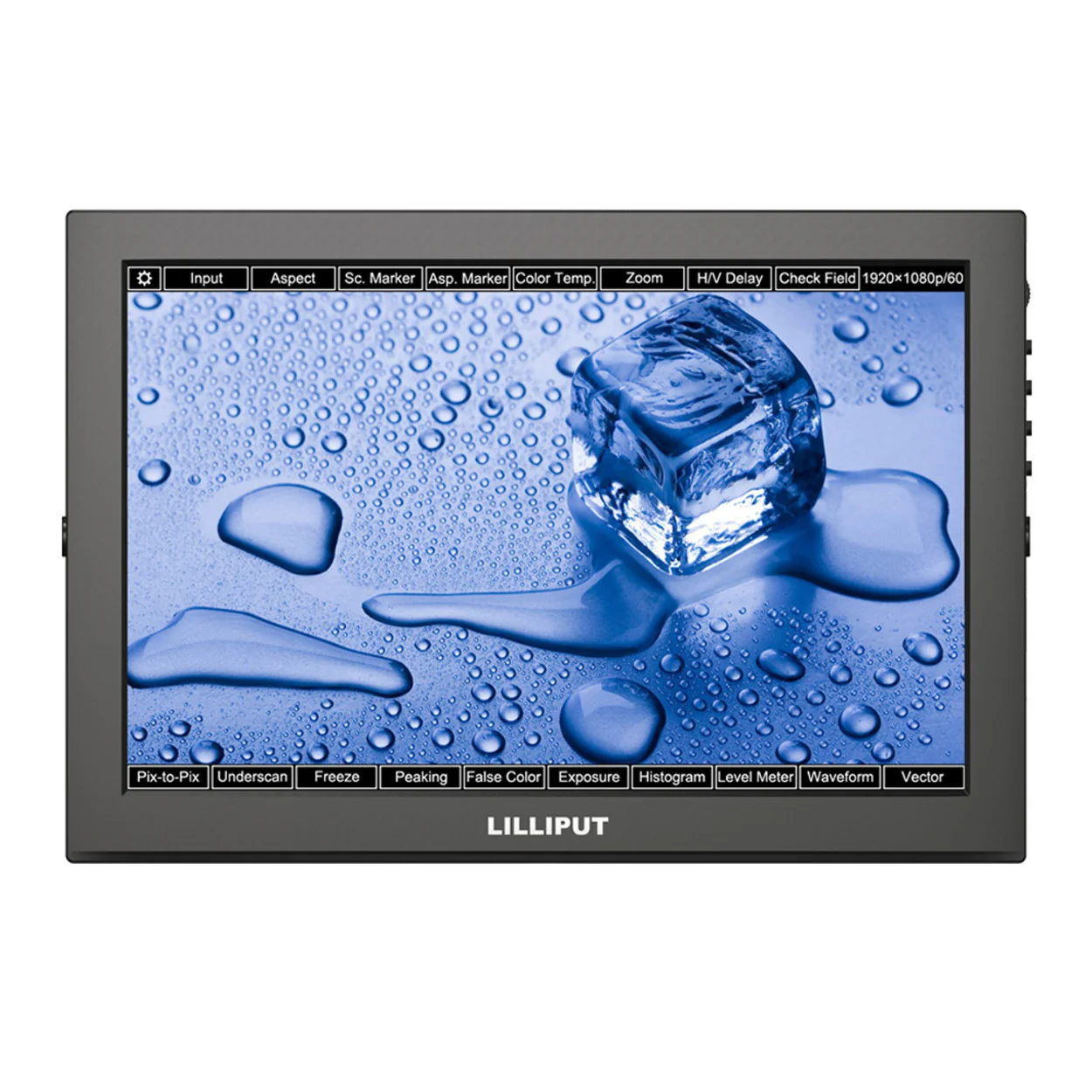

Lilliput TM-1018/O/P 10.1-Inch Touch Camera Monitor

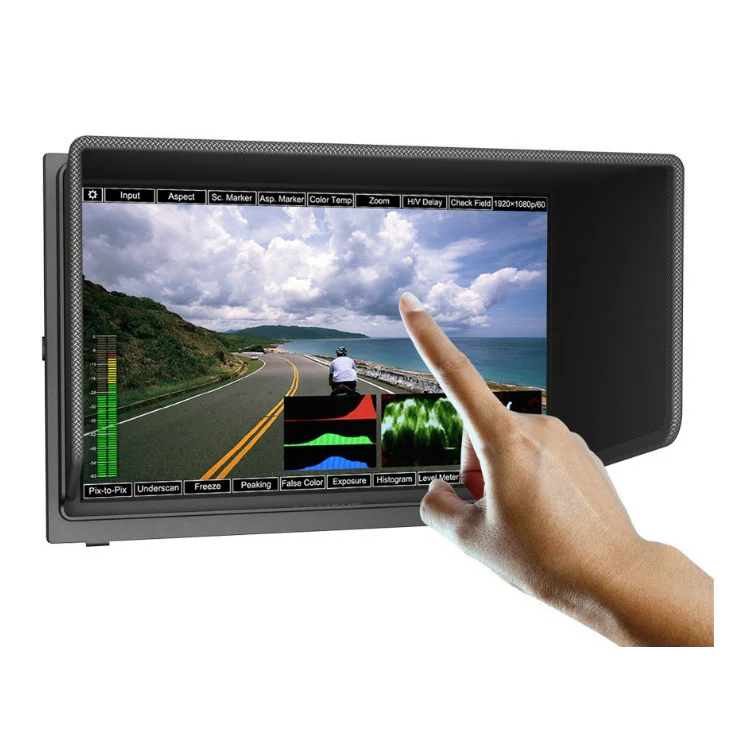

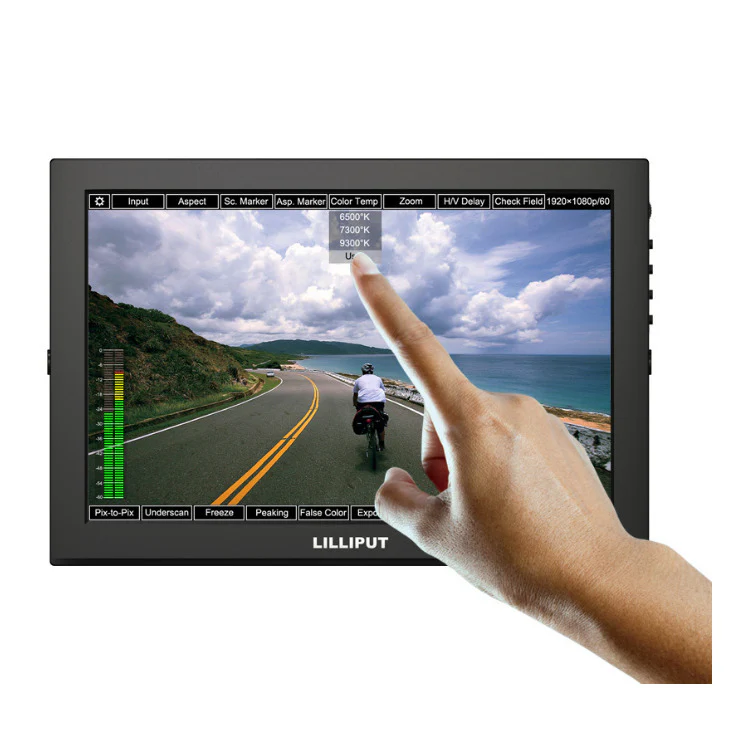

The Lilliput TM-1018/O/P 10.1-inch Touch Camera Monitor creatively integrates waveform, vectorscope, video analyzer and touch control, all into one monitor. This Lilliput on-camera monitor provides Luminance/Color/RGB histograms, Luminance/RGB Parade/YCbCr Parade waveforms, Vectorscope and other waveform modes, as well as measurement modes such as Peaking, Exposure and Audio Level Meter. These features make it possible to accurately monitor when making movies or playing videos.
Level Meter, Histogram, Waveform and Vectorscope can be displayed horizontally all at once with the Lilliput TM-1018/O/P. This Lilliput monitor also provides professional waveform measurement and color control, allowing you to record natural color.
Histogram
The histograms consist of RGB, Color and Luminance histograms:
- RGB shows the red, green and blue channels in an overlay histogram
- Color shows histograms for each of the red, green and blue channels
- Luminance shows the distribution of brightness in an image as a graph of luminance
Waveform
Waveform monitoring consists of Luminance, YCbCr Parade and RGB Parade waveforms. These are used for measuring the brightness, luminance or chroma values from a video input signal. This provides multiple benefits. It will warn you of out-of-range conditions such as overexposure errors, and it will also help correct color and the balance of your camera's blacks and whites.
Vectorscope
Vectorscope displays image saturation and shows you where on the color spectrum your pixels reside. This can be displayed in various sizes and positions. Vectorscope lets you monitor the color gamut range in real time.
Audio Level Meter
To see numerical indicators and headroom levels, turn to the Audio Level Meter. This generates accurate audio level displays, which will prevent errors during monitoring.
Ideal for Variety of A/V Applications
In addition to those advanced functions, this Lilliput monitor is equipped with several design features that make it perfect for numerous audio/video uses. This slim and portable monitor has a 10.1-inch widescreen panel with a 16:9 aspect ratio. The TM-1018 has been seen in TV broadcast rooms, audio-visual installations and as a preview monitor used by professional camera crews for on-camera and video village installations.
Advanced Screen
The TM-1018 uses the latest IPS screen panels, which enable greater pixel pitch, 170° wide viewing angles and 1280 x 800 base resolutions. This outstanding resolution capability allows upscaling to a Full HD 1080p signal. The multi-touch capacitive IPS LED screen of the TM-1018/O/P is boosted further by a crisp, sharp 800:1 contrast ratio and an LED backlight for clearer picture and consistent, lasting brightness.
On Screen Volume Level
This field monitor provides an on-screen volume meter, letting you monitor unwanted background noise or volume peaks while filming your video and connecting via HDMI.
Versatility

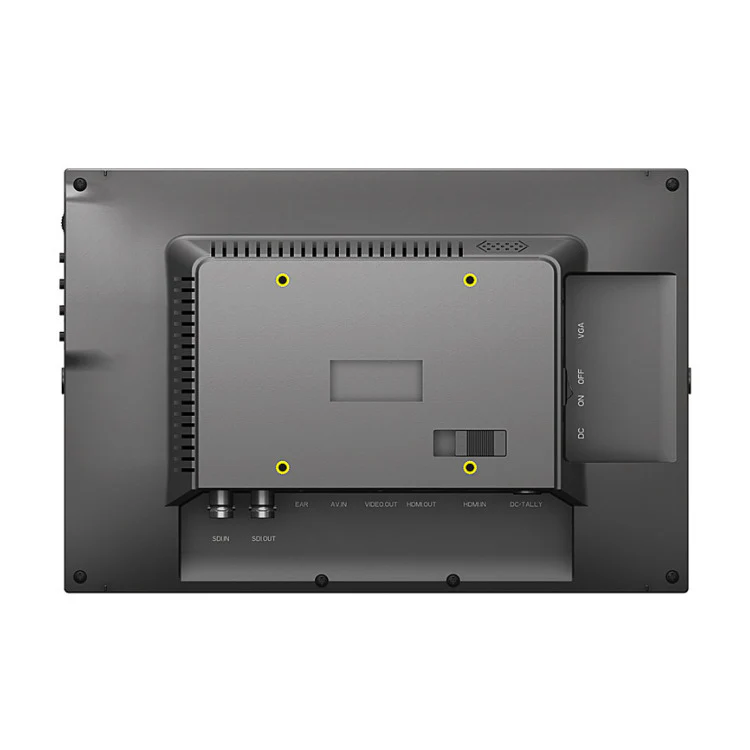

The Lilliput TM-1018/O/P is made for DSLR cameras and is compatible with all major varieties with HDMI input. It features abundant interfaces, including HDMI, VGA and AV inputs. It allows for HDMI pass-through thanks to an HDMI output feature. Duplicate video seamlessly onto a second monitor without having to use a pesky HDMI splitter.
The monitor's many advanced functions are usually only found on more expensive field monitors. Peaking, histograms, false color filtering, exposure and more make the TM-1018 a truly versatile product.
