AV Matrix MSS1611-S 16x16 3G-SDI Seamless Matrix Switcher
The AV Matrix MSS1611-S is the perfect solution for a large broadcast project. The compact SDI routing switcher features 16 inputs and 16 outputs, redundant power connections and an elegant machined metal front panel with 2.2-inch LCD for routing label display. Routing can be performed by direct button selection and the spin knob controller. The 3G-SDI seamless matrix switcher supports standard 3G, HD, and SD SDI rates, automatic bypass of non-standard rates between 270 Mbit/s and 3 Gbit/s. Built-in frame synchronizer supports simultaneous input of signal of different resolution frame rates, which can realize seamless switching without black screen. It can conveniently control by front panel button, PC software via LAN/RS-422.
Seamless Switching
Built-in frame synchronizer supports simultaneous input of signals of different resolution frame rates, which can realize seamless switching without black screen. Signal switching is clean without the need for external REF synchronization.
Up and Down Scaling
The MSS1611-S Switcher is compatible with multiple format signal inputs in different resolutions and frame rate with auto technology. User can set the output format up or down according to their need.
Controls Methods
The Matrix Switcher comes with a full control panel that almost all functions can be set through this panel via the dedicated buttons, menu knob and 2.2-inch LCD screen. Plus, with the free PC software via Ethernet user can control it on a Windows PC conveniently.
Compact Design and Redundant Power

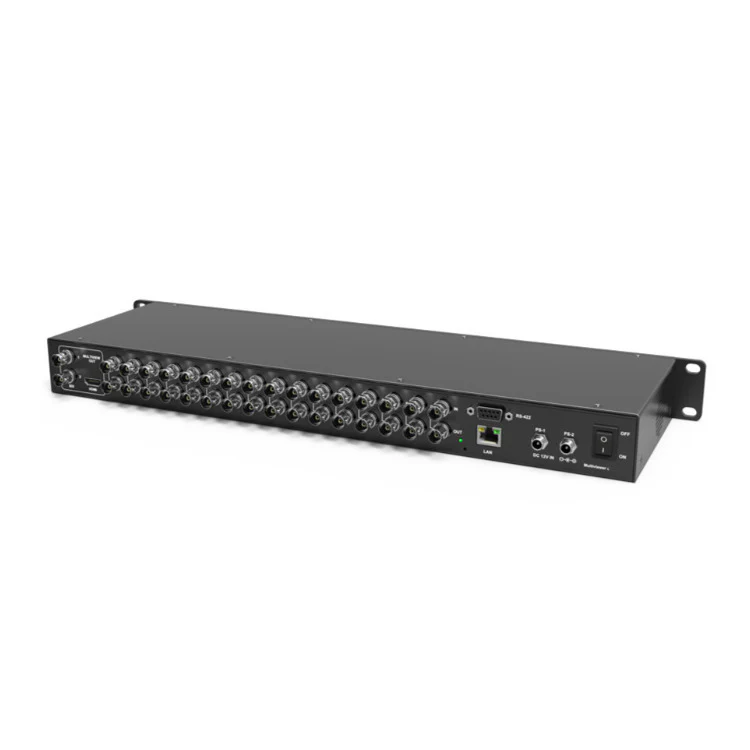

The use of premium components coupled with dual redundant power supplies ensures devices works fine even when the mainpower supply encounter problems. The super-compact 1RU design makes it a perfect fit for any live broadcast or post production, such as OB vans, broadcast control rooms and studios.
