Kramer 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS–232 and IR over Long–Reach HDBaseT

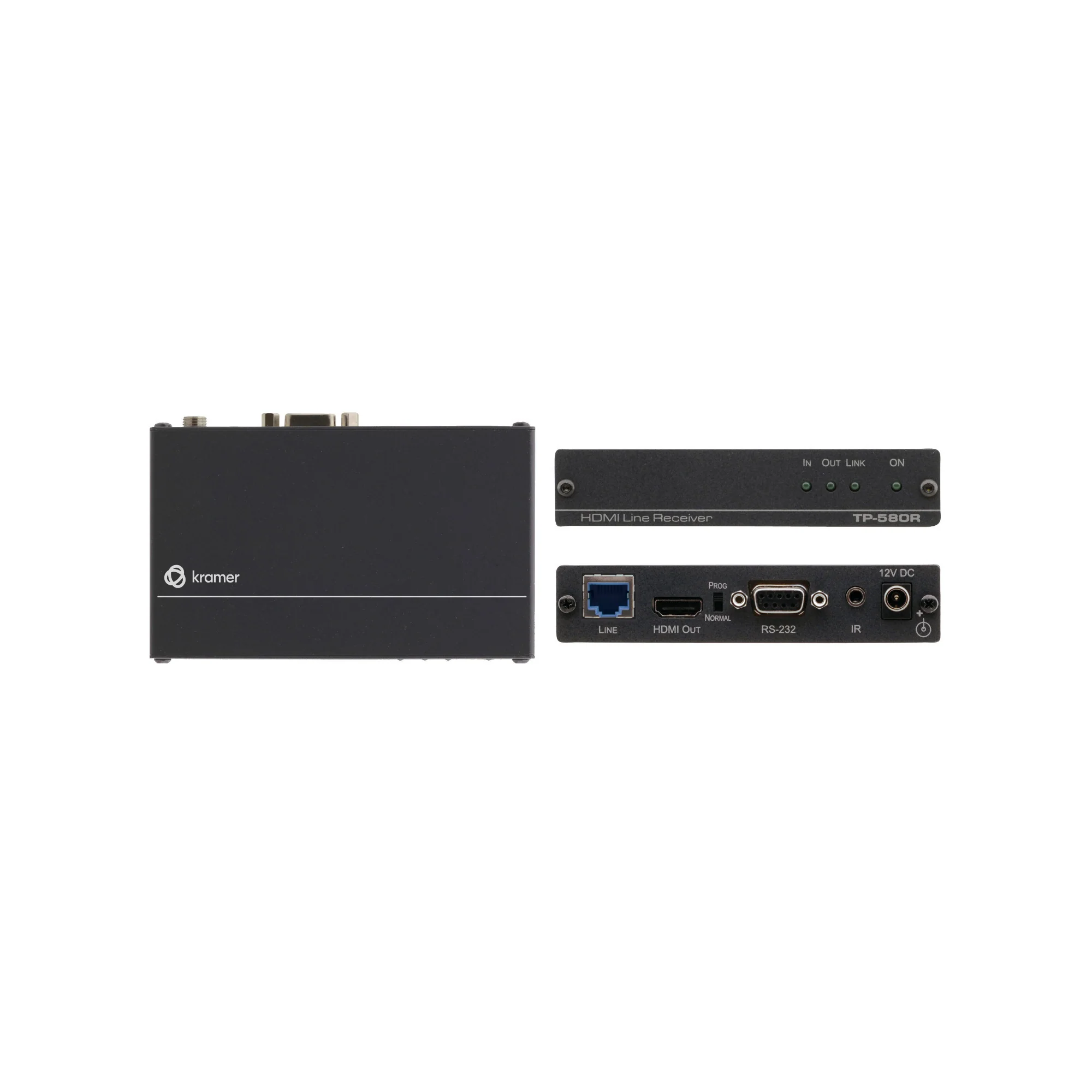

The TP−580R is a 4K UHD, twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. It supports resolutions up to 4K@60 UHD (4:2:0). The TP−580T converts HDMI, RS−232, and IR signals into a twisted pair signal that it transmits to a TP−580R receiver. The TP−580R converts the twisted pair signal back into HDMI, bidirectional RS−232, and IR signals.
High Performance Standard Extender
Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–580R is a standard extender that can be connected to any market–available HDBaseT– compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
HDMI Signal Extension
HDCP 2.2 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
I–EDIDPro Kramer Intelligent EDID Processing
Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Multi–channel Audio Extension
Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Bidirectional RS–232 Extension
Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension
IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
Cost–effective Maintenance
Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.
Easy Installation
Compact DigiTOOLS fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Original: $295.00
-65%$295.00
$103.25More Images
Kramer 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS–232 and IR over Long–Reach HDBaseT
The TP−580R is a 4K UHD, twisted pair receiver for HDMI, bidirectional RS−232 and IR signals. It supports resolutions up to 4K@60 UHD (4:2:0). The TP−580T converts HDMI, RS−232, and IR signals into a twisted pair signal that it transmits to a TP−580R receiver. The TP−580R converts the twisted pair signal back into HDMI, bidirectional RS−232, and IR signals.
High Performance Standard Extender
Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–580R is a standard extender that can be connected to any market–available HDBaseT– compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
HDMI Signal Extension
HDCP 2.2 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
I–EDIDPro Kramer Intelligent EDID Processing
Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Multi–channel Audio Extension
Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Bidirectional RS–232 Extension
Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension
IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
Cost–effective Maintenance
Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.
Easy Installation
Compact DigiTOOLS fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
