Deity SRD Mini 4 Channel Black Radio Frequency Distribution Device Bundle
Deity SRD Mini Portable Ultra-Lightweight 4-Channel Radio Frequency Distribution Device (Black)
Simplify the management of wireless microphone signals in demanding field conditions with the Deity SRD-Mini RF Distribution Device, a portable 4-channel antenna-distribution system designed specifically for location sound mixers. This RF distro is equipped with two main ins and four outs (A and B), for a 2-to-8 split.
Supports Passive and Active Antennas

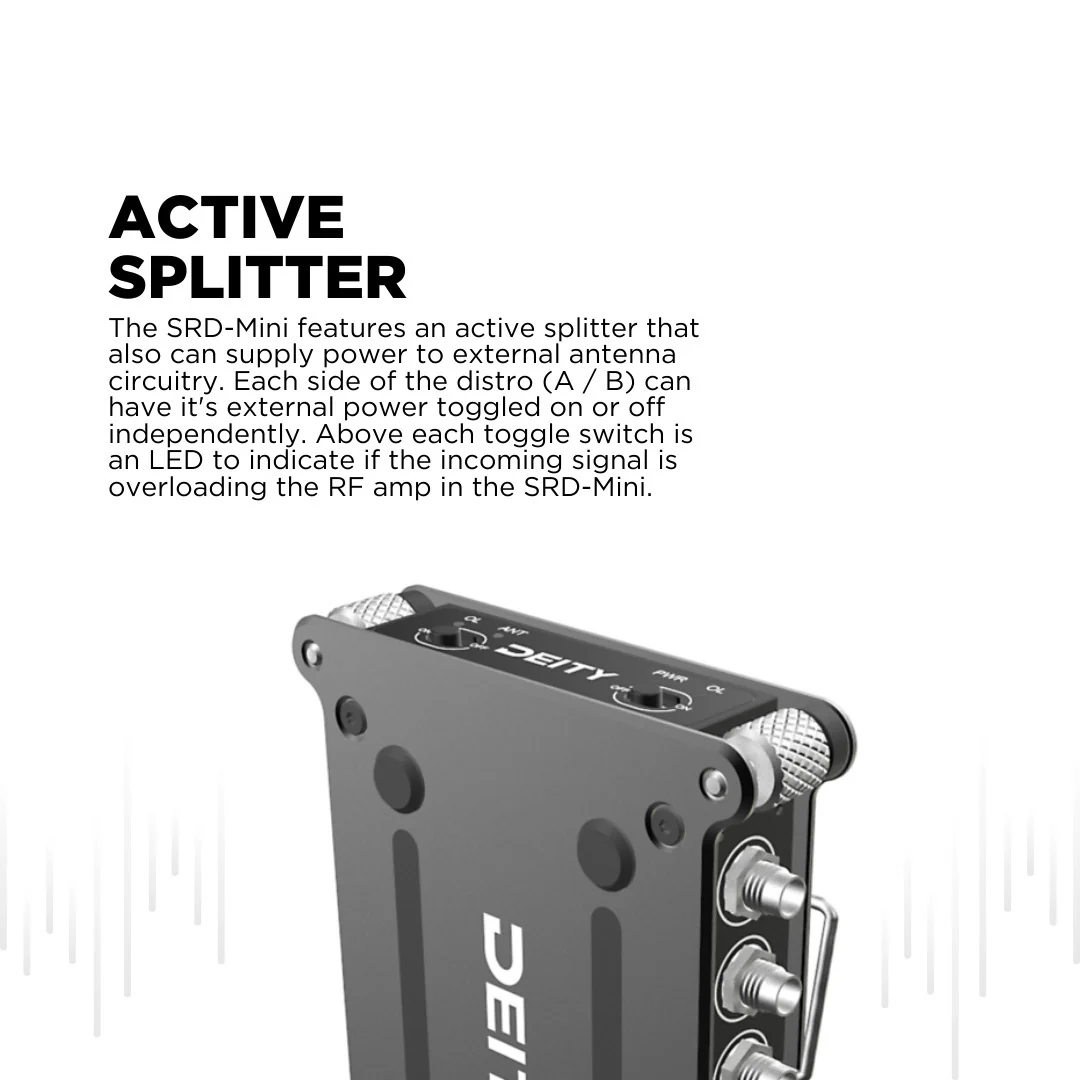

Supporting both passive and active antennas, the SRD-Mini features an active splitter that compensates for gain loss, ensuring that your RF signals remain strong and consistent. The unit also supplies power to external antenna circuitry. Each side of the distro (A and B) can have its external power toggled on or off independently.
Ultra-Lightweight and Slim
The SRD-Mini is made of CNC aluminum and is ultra-lightweight. Its slim and ergonomic design makes it easy to place it wherever you need to in your sound bag.
Industry Standard Connectors

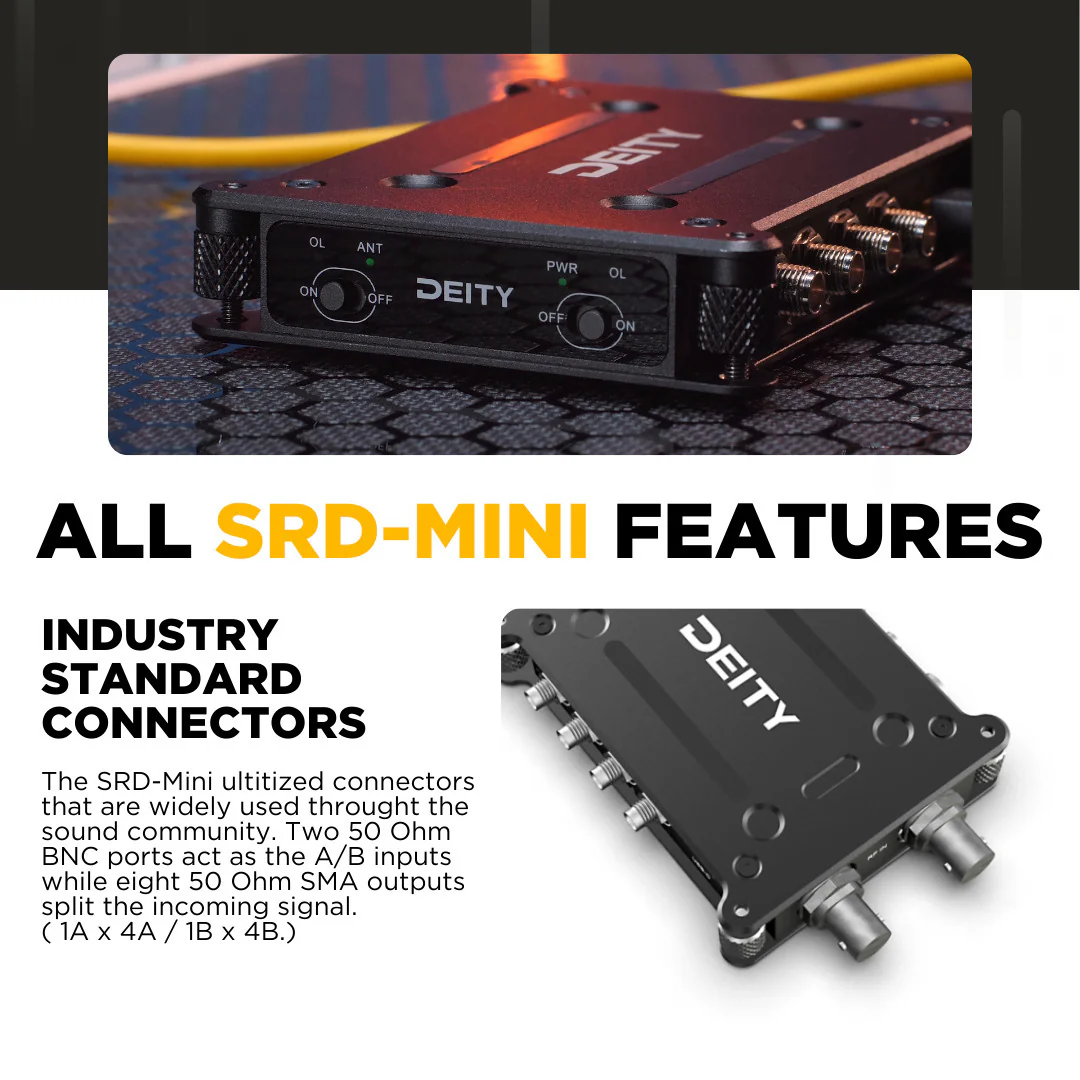

The SRD-Mini utilizes standard connectors, ensuring compatibility with a wide range of equipment. Two 50-ohm BNC ports act as the A and B inputs while eight 50-ohm SMA outputs split the incoming signal (1Ax4 A and 1 Bx4 B).
Wide Frequency Range
The SRD-Mini operates in the 470 MHz to 1 GHz range, allowing it to operate anywhere in the world and with nearly any UHF wireless microphone system you may already own.
Multiple Power Options

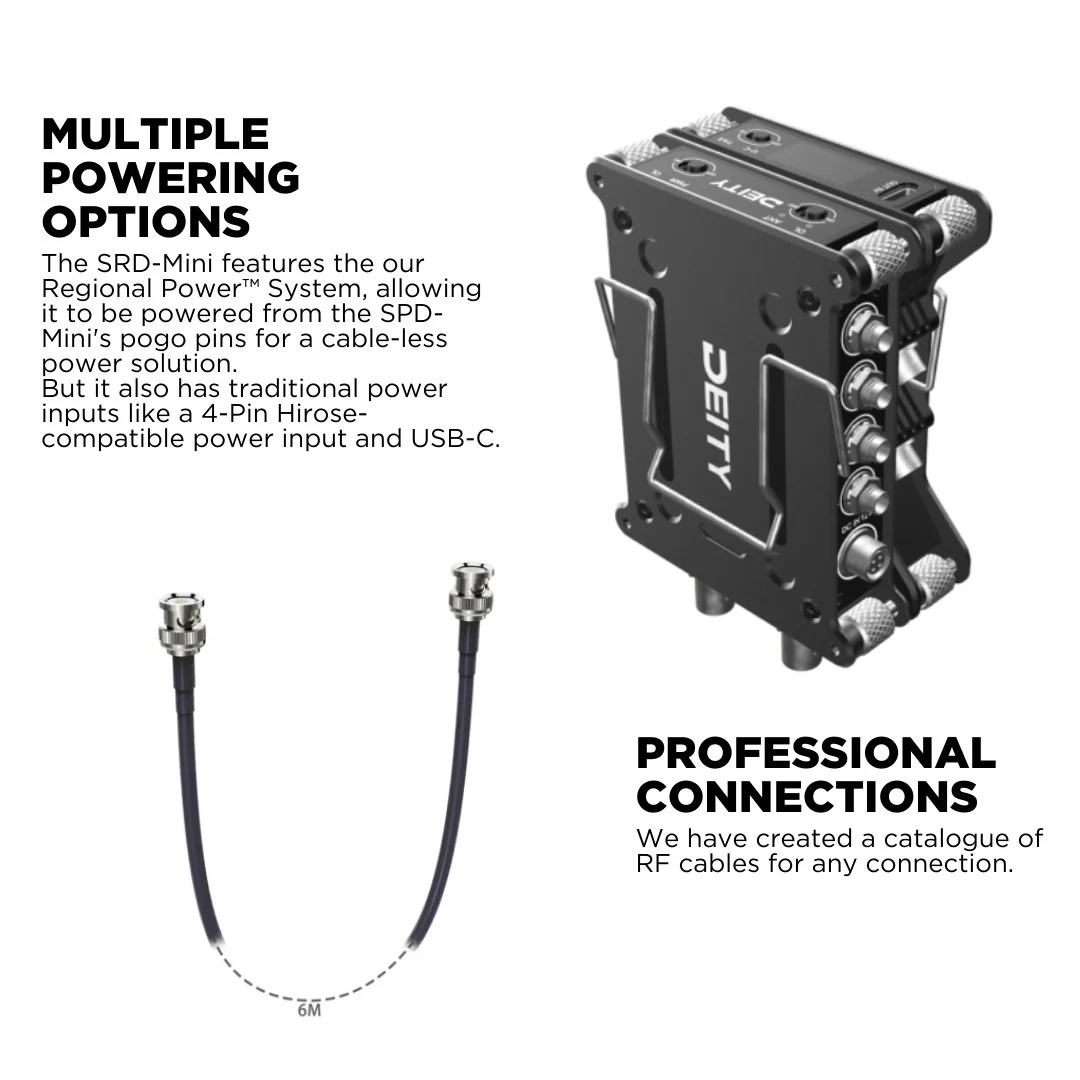

The SRD-Mini has traditional power inputs like a 12-16.8 VDC 4-pin Hirose-compatible connector and a 5 VDC USB-C connector. For a cable-less power solution, the unit can also be powered from the SPD-Mini power distributor (available separately) via its pogo pins.
Deity BF1 470MHz-1GHz Omnidirectional Lightweight Butterfly Antenna for UHF Wireless Systems (Black)
The Deity BF1 Butterfly Antenna in Black is an antenna specially designed for UHF wireless systems. It has excellent signal reception and transmission capabilities and is especially suitable for professional wireless recording applications. Its bandwidth covers 470MHz to 1GHz and adopts vertical polarization mode, which can show superior performance in today's complex RF environment. The antenna is made of composite fiberglass material, which is lightweight and strong.
Clear Wireless Audio
The Deity Butterfly bow-tie antenna is designed to have a relatively wide bandwidth. This means it can operate effectively over a range of frequencies, which can be advantageous in wireless microphone systems. Film sets often use different frequency bands for wireless microphones to avoid interference and a broadband antenna can cover all these bands without needing frequent adjustments.
Unparalleled Performance
The BF1 by Deity Microphones is your ultimate companion for pristine wireless sound on film sets. The BF1 is not just a passive omnidirectional butterfly antenna - it's a testament to cutting-edge engineering and unparalleled performance.
Ultra-Wideband Coverage
With a frequency range spanning from 470MHz to 1GHz, the BF1 ensures seamless transmission across a wide spectrum, allowing you to capture every nuance with clarity and precision. Boasting an average gain of plus 2.2dBi, the BF1 enhances signal reception, giving you a distinct advantage in capturing pristine audio in challenging environments.
Featherlight Construction
Weighing in as one of the lightest antennas in its class, the BF1 ensures effortless portability without compromising on durability or performance. Rated IP65, the BF1 is built to withstand the rigors of professional filmmaking, offering resistance against dust and water ingress, so you can focus on capturing the perfect shot without worrying about equipment failure.
More Images
