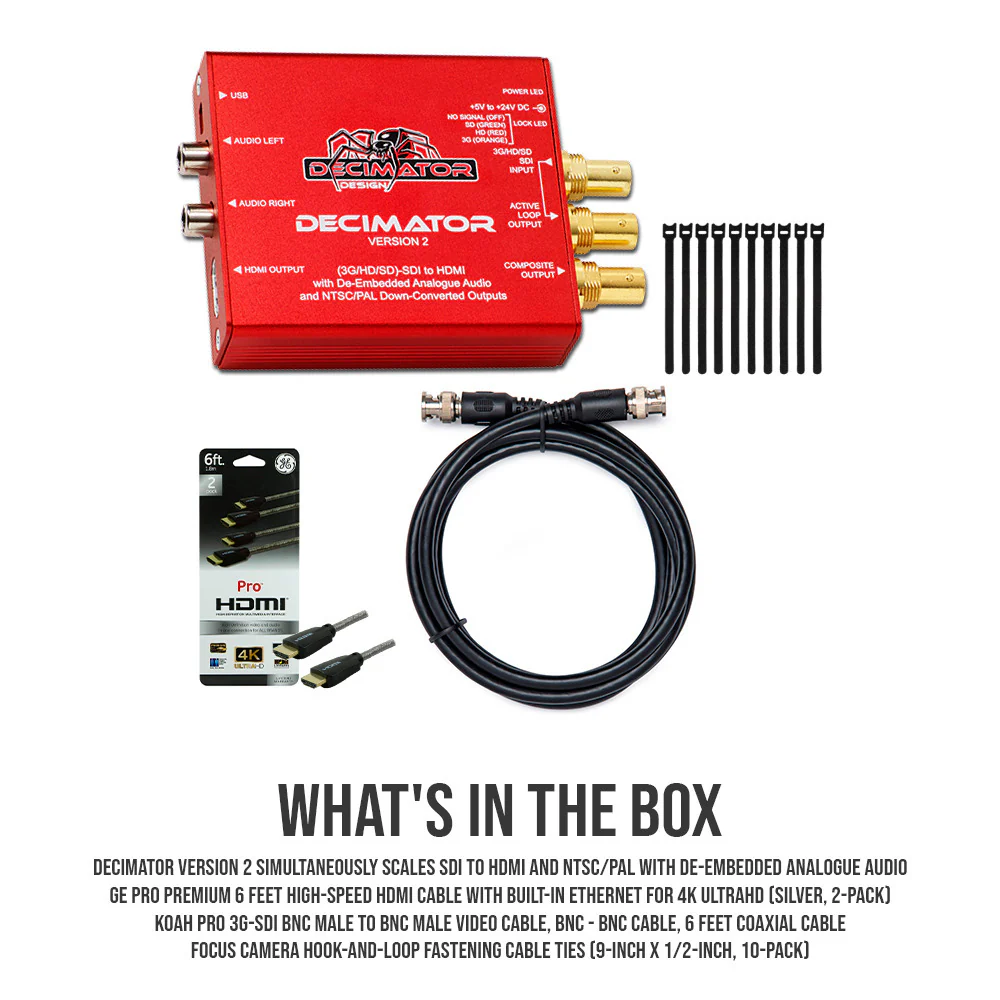

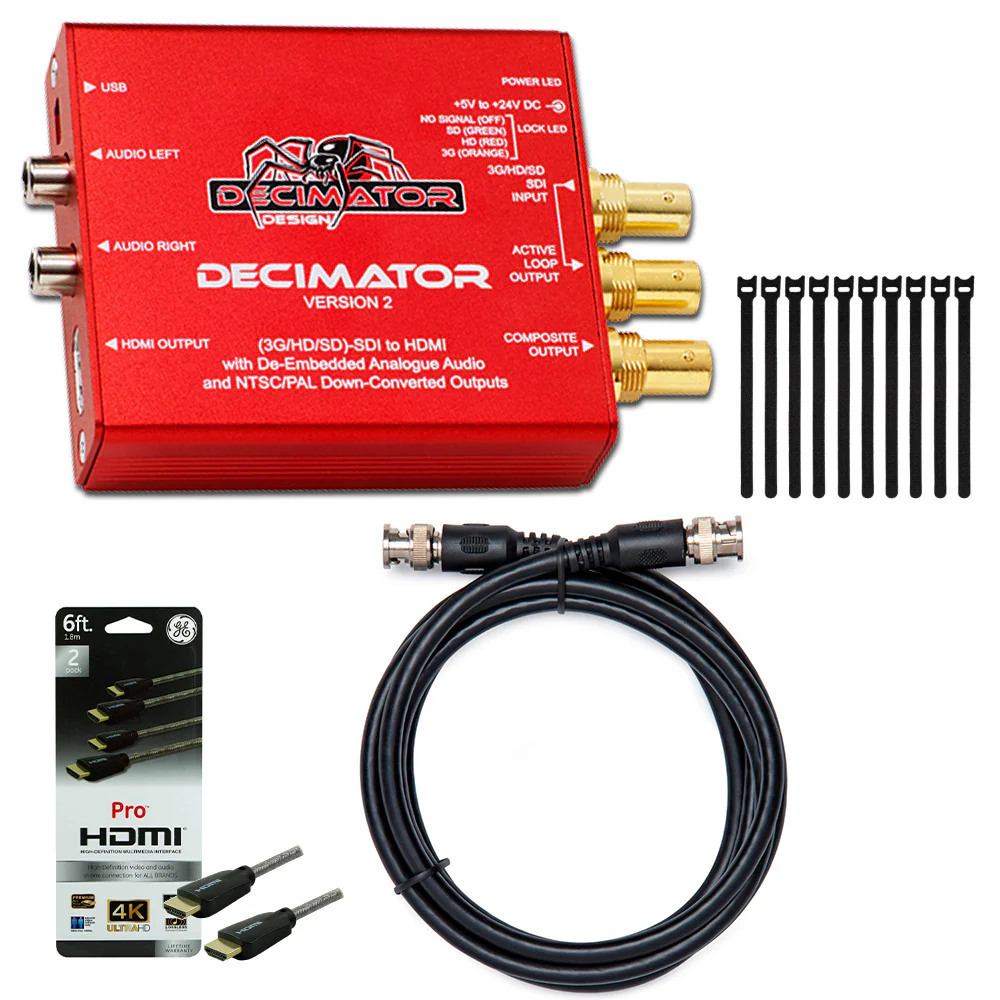

Decimator Version 2 Simultaneously Scales SDI to HDMI and NTSC/PAL with Analogue Audio Bundle
Decimator Version 2 Simultaneously Scales SDI to HDMI and NTSC/PAL with Analogue Audio Bundle

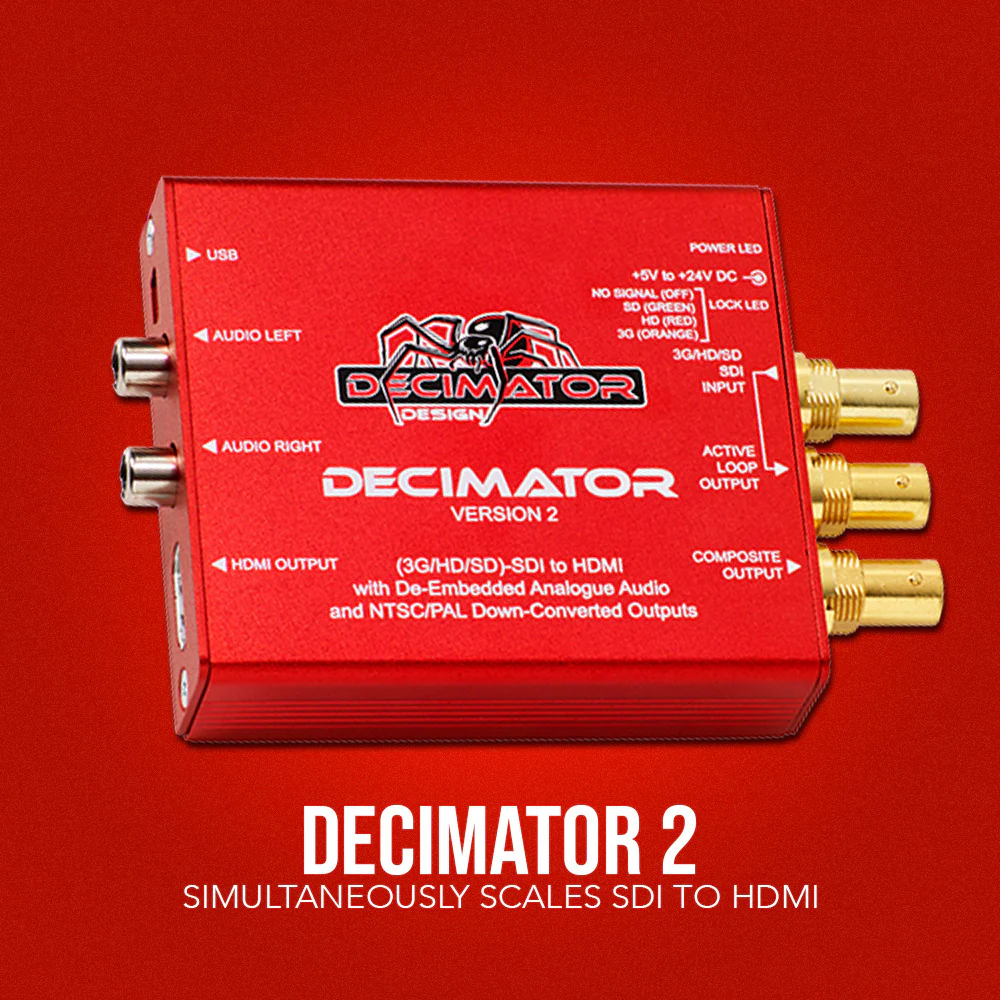

Decimator Version 2 Simultaneously Scales SDI to HDMI and NTSC/PAL with De-Embedded Analogue Audio

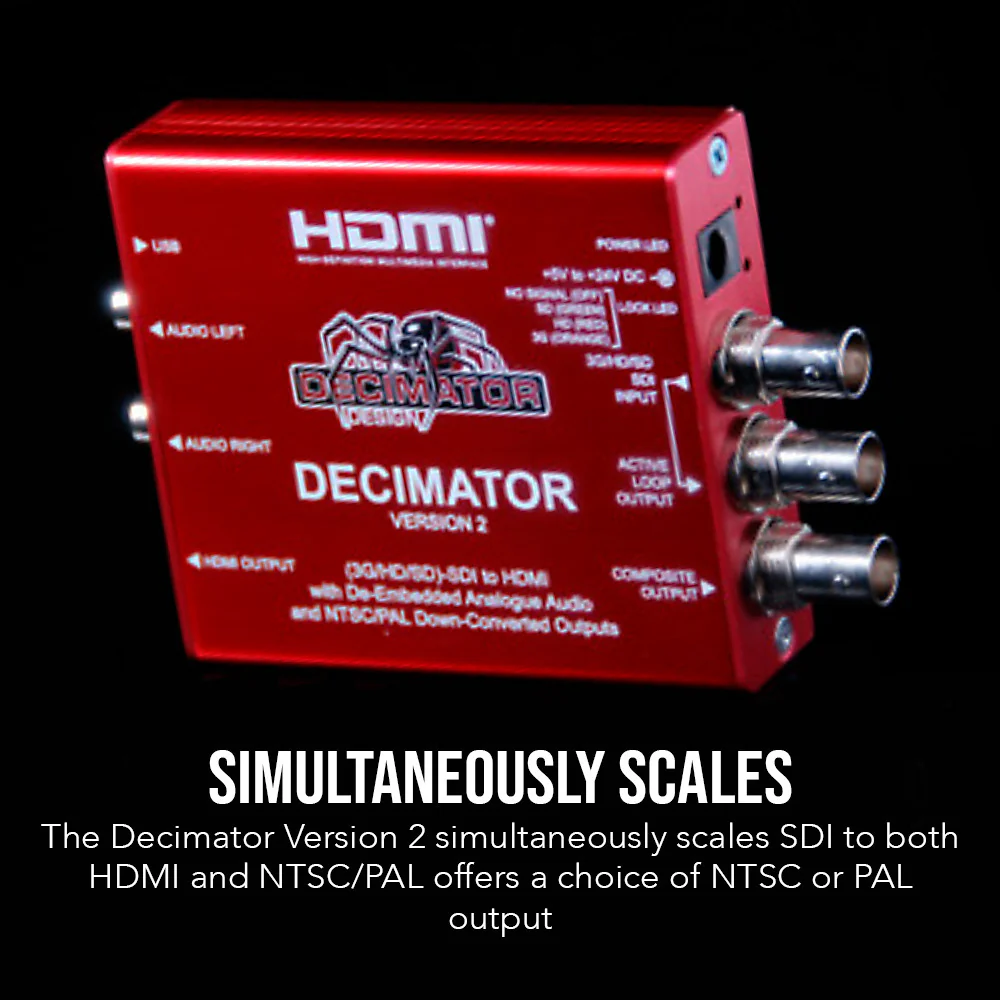

The Decimator Version 2 simultaneously scales SDI to both HDMI and NTSC/PAL offers a choice of NTSC or PAL output, auto detects 3G, HD, or SD (26 formats are supported), and can handle switching of synchronous sources. Low latency 3G/HD to SD Down-conversion with ARC (aspect ratio conversion) of 16:9 to 16:9 Anamorphic, 16:9 to 4:3 Letterbox, or 16:9 to 4:3 Center Cut (crop to 4:3).
SD Pass
Also features SD Pass-through and full 10-bit data path and multipoint interpolation.

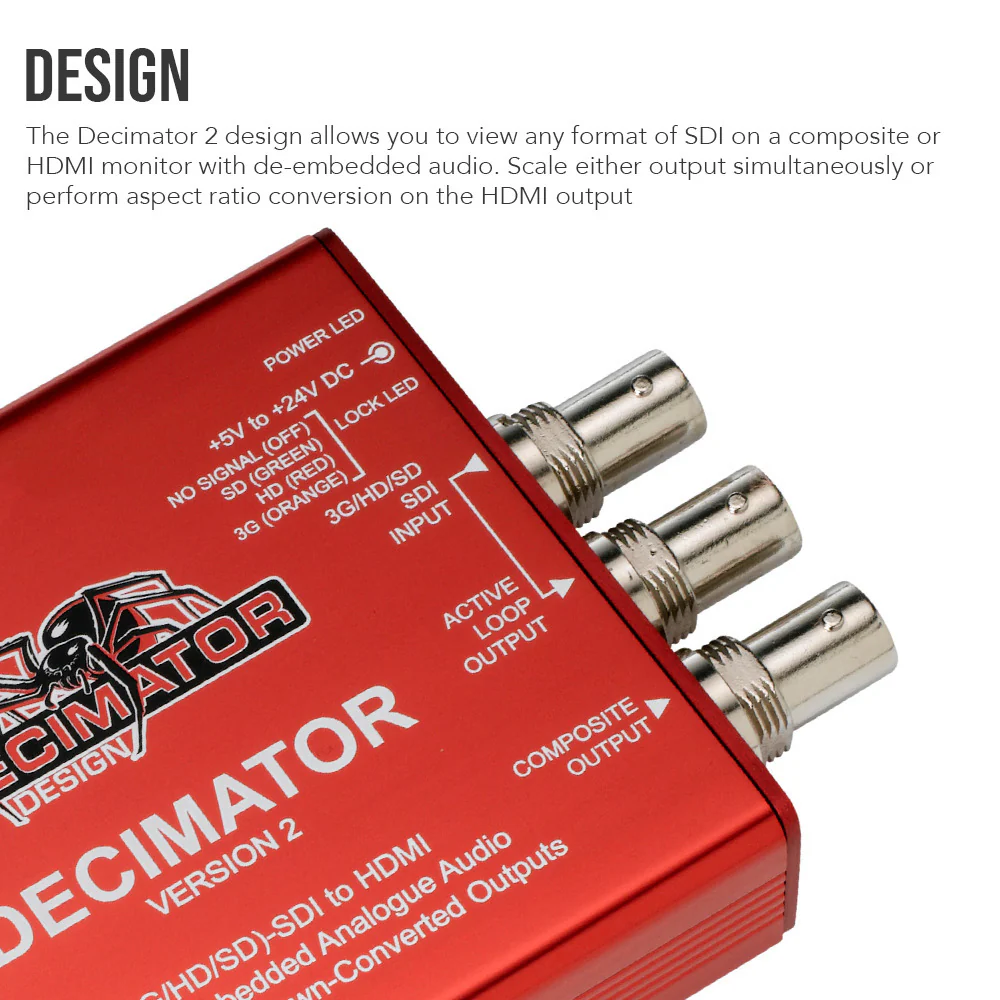

Design
The Decimator 2 design allows you to view any format of SDI on a composite or HDMI monitor with de-embedded audio. Scale either output simultaneously or perform aspect ratio conversion on the HDMI output.

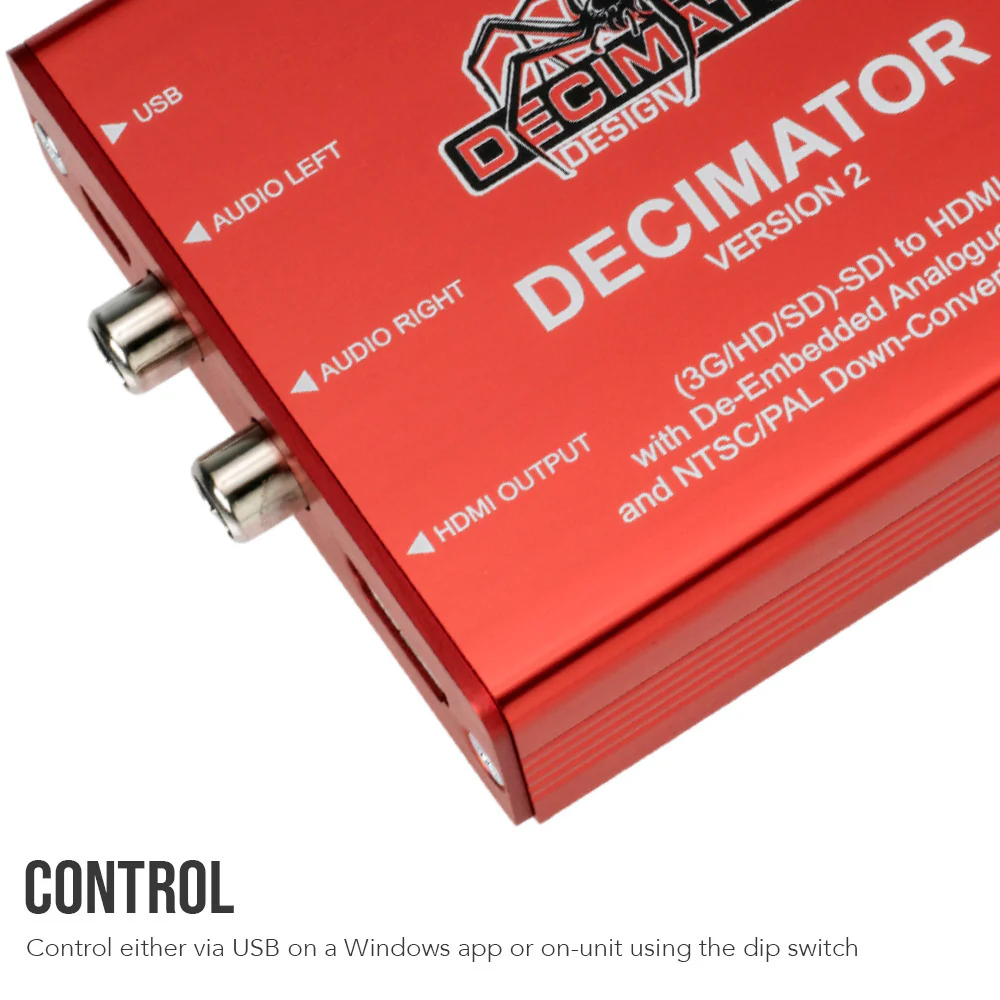

Control
Control either via USB on a Windows app or on-unit using the dip switch.
Auto
Auto detects 3G, HD, or SD (26 Formats in total) and can handle switching of synchronous sources.
Scaling HDMI and Composite Outputs
Simultaneous scaling on both the HDMI and Composite outputs with a maximum delay of 1 input frame. HDMI output with optional full scaling and aspect ratio conversion.
Down-Converted Composite Output
Down-converted Composite output with NTSC or PAL is selectable for 3G/HD inputs, SD will be passed unchanged, low latency 3G/HD to SD Down-conversion with ARC of either 16:9 to 16:9 anamorphic, 16:9 to 4:3 Letterbox and 16:9 to 4:3 Centre Cut. Full 10-bit data path and multipoint interpolation and 16 times over-sampling for composite output.
16-Channel Audio
Full 16-Channel Audio metering is displayed on the HDMI output with any of the 4 audio groups individually selectable, vertical or horizontal bars, AES/EBU, VU, Extended VU, BBC, EBU, DIN, and NORDIC Scales, bar and float, bar only or float only, transparency adjustment, separate bar and float ballistics control, adjustable reference level, red, yellow and green range adjustment, bar thickness adjustment, and margin adjustment.
Adjustable Graticules Generator
Adjustable graticules generator is displayed on the HDMI output with separate enables for safe action, safe title and centre cross, adjustable position for either safe action or safe title, adjustable colors for safe action, safe title, and centre cross.
Text Overlays
Text overlays are displayed on the HDMI output with adjustable foreground and background colors, adjustable 16-character text, and current input format status.
GE Pro Premium 6 Feet High-Speed HDMI Cable with Built-In Ethernet for 4K UltraHD (Silver, 2-Pack)
Koah Pro 3G-SDI BNC Male to BNC Male Video Cable, BNC - BNC Cable, 6 Feet Coaxial Cable
Enjoy high-definition video every time and anywhere. The Koah Pro Premium SDI Video Cable is an 18 AWG RG-6 solid coaxial cable that supports high-definition RF and video signals. The 3G SDI coax cable is made of flexible material for tight fits and is easy to bend for wall or ceiling installations. It remains the preferred choice to relay cable crisp and uninterrupted television signals. The premium 3G-SDI video cable is a 6-feet long dual-sided coax cable that features BNC male to BNC male simple, convenient, and ready-to-use screw-on connectors supporting satellite signal transmission for residential or commercial purposes installations. This cable is built with OFC Braided Shielding and FPE insulation and provides superior protection against signal drop-outs and RF/EMI interference. Made with cellular polyethylene dielectric, the cable integrates both audio and video signals for correct sign switch even over long runs, with four shields around the cable to protect the integrity of the signal. The BNC to BNC connectors with copper contact pins are ideal for high RF and video transmission bandwidth with full SDI performance. Its thicker dielectric insulation makes it less likely to carry damaging electric currents. Also featuring a UV-resistant outer jacket, this cable is perfect for the outdoors. With minimum static and high picture quality, the coax cable is optimal for high-definition signals in the home and commercial entertainment systems. It supports HD-SDI, 3G-SDI, and SD-SDI signals, making it compatible with VCR, DVR, camera, CB radio, CCTV monitor, SDI converter, video splitter, satellite receiver, digital router, cable modem, and oscilloscopes. Koah values customer satisfaction above all else; hence The Koah Pro Premium 3G-SDI Video Cable comes with a 1-year warranty for a risk-free investment. Our durable cable sleeve protects against extreme temperature changes and weather conditions, and the supreme quality BNC male connectors provide strain relief.
Focus Camera Hook-and-Loop Fastening Cable Ties (9-Inch x 1/2-Inch, 10-Pack)
Declutter your office, living room or any electronics with the Focus Camera Hook-and-Loop Fastening Cable Ties (9-inch x 1/2-inch, 10-Pack). These reusable ties attach easily using hook-and-loop material. This pack features 10 ties that easily fasten cables and wires for better organization.
