Blackmagic Design 2110 IP Converter 4x12G PWR
Convert and
power up to 4 x 2110 IP video cameras or converters. Bi-Directional 4 channel
12G-SDI 2110 IP converter includes control panel with LCD and supports HD and
Ultra HD standards to 2160p60. This converter is designed to add SMPTE-2110 IP

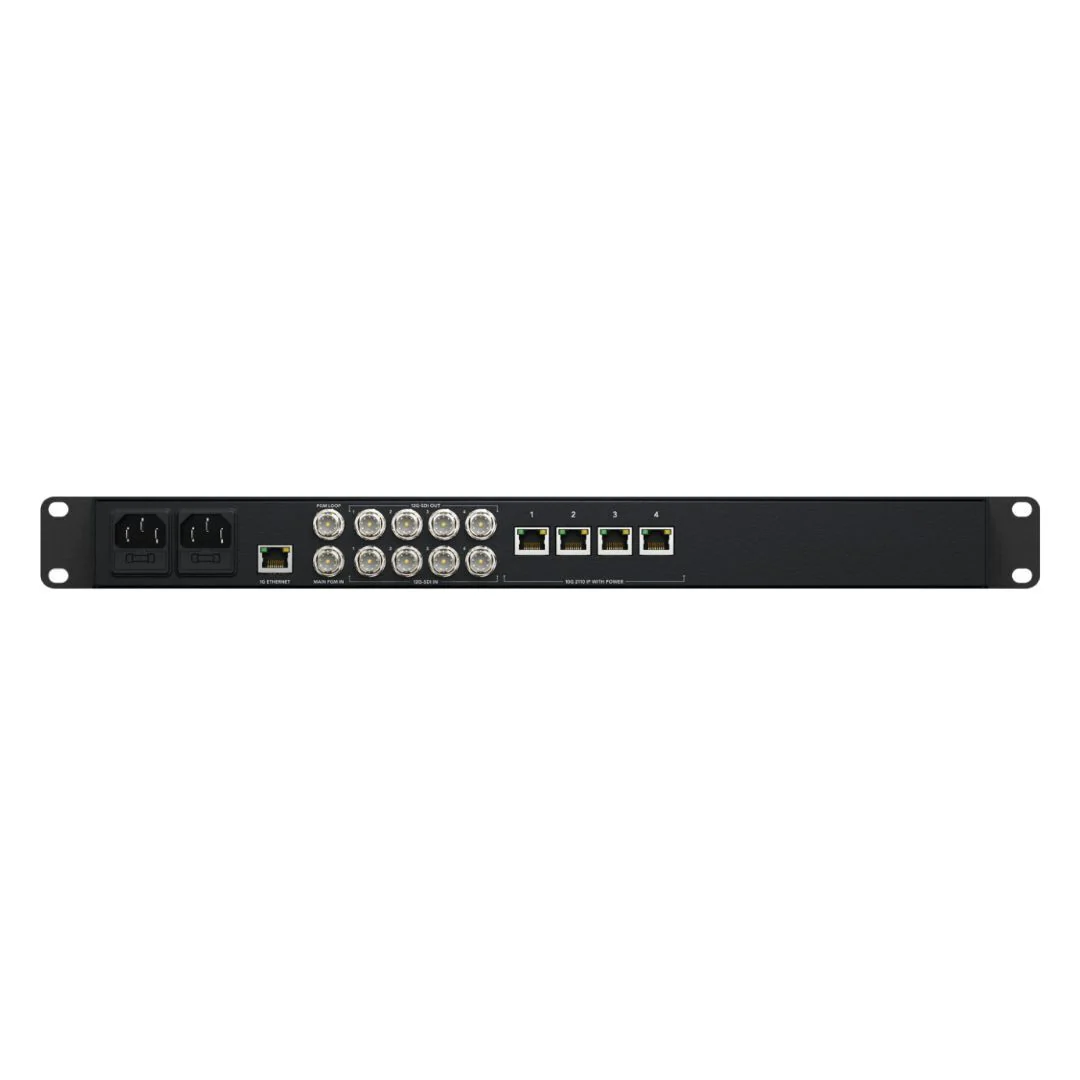

video to 12G-SDI broadcast equipment. The Blackmagic Design 2110 IP Converter features a 1RU design with 4
independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45
10G Ethernet connections. This means it can also supply high power to each 10G
Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera
6K Pros, all at the same time. Each channel has a 12G-SDI input, but there's
even a 12G-SDI program return input that sends to all channels.
Build Professional SMPTE‑2110 Broadcast Systems
The
Blackmagic 2110 IP Converters have been designed to integrate SDI equipment
into 2110 IP broadcast systems. The rack mount model can be installed in
equipment racks right next to the equipment you're converting. Plus most
Blackmagic SMPTE-2110 IP video products can be remote powered. But adding
converters means you get a low cost way to transform all your video equipment
to SMPTE-2110. Simply add a Blackmagic 2110 IP Converter to live production
switchers, disk recorders, streaming processors, cameras, TVs and more.
Conforms to the SMPTE‑2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast. It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that’s also generated from the PTP clock. Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping or timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.
