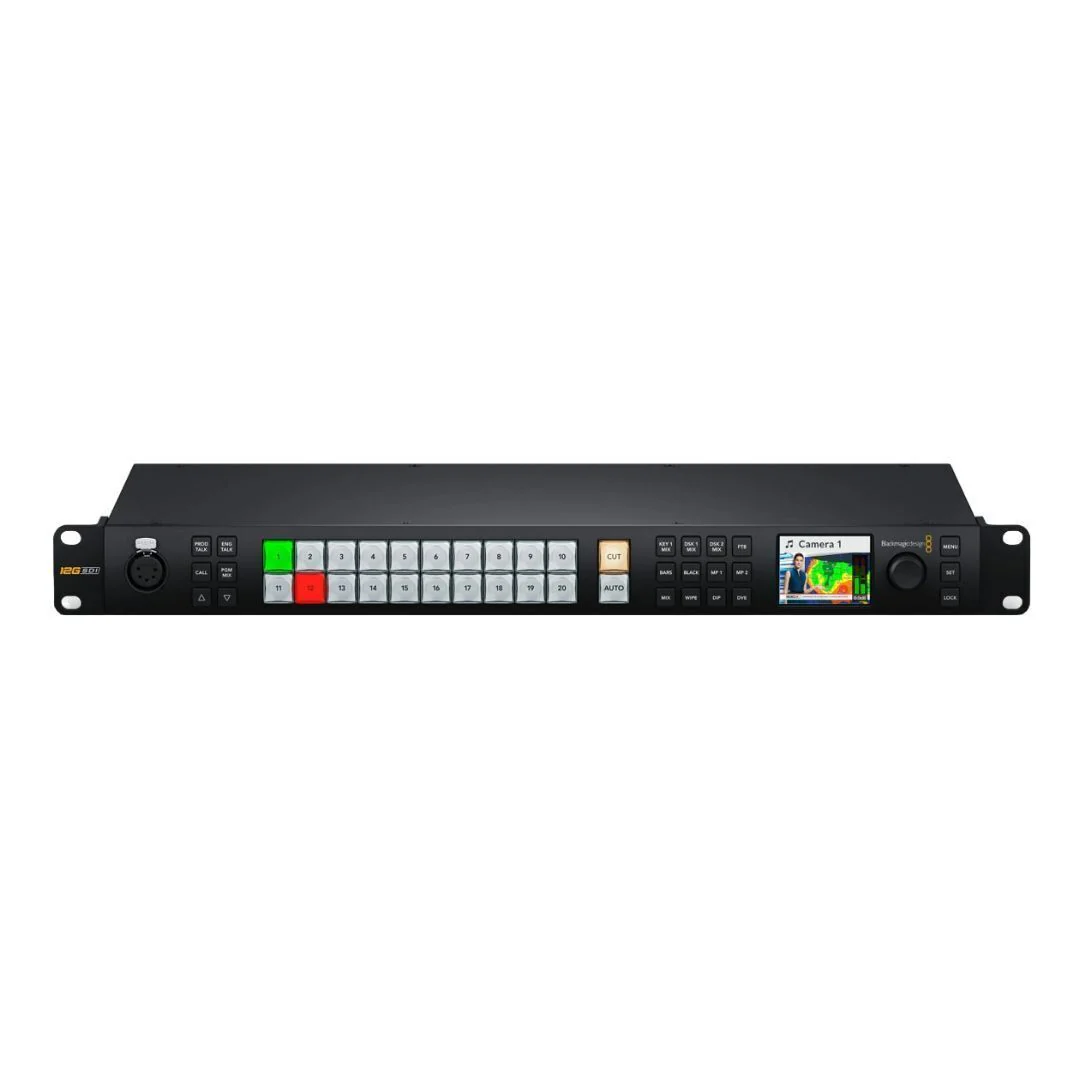

Blackmagic Design ATEM 2 M/E Constellation 4K Live Production Switcher (Black)

Introducing the Blackmagic Design ATEM 2 M/E Constellation, the world’s most powerful HD and 4K live production switcher. The advanced 2 M/E live production switcher includes 20 standards converted 12G-SDI inputs, 12 x 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, and a SuperSource for a total of 6 DVEs. Each SDI input features a full standards converter, and the built-in Fairlight audio mixer includes a compressor, limiter, 6-band parametric EQ, and expander on each input. The free ATEM Software Control is included, or you can add a 1 M/E, 2 M/E, or 4 M/E ATEM Advanced Panel.
Seriously Advanced Broadcast Power
ATEM Constellation switchers feature a compact rack mount design with a built-in control panel. This allows the operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on-screen menus. The compact design is perfect for portable live production, with the rear of the switcher including connections for 3G-SDI or 12G-SDI inputs, aux outputs, balanced audio, and Ethernet for control. Even with all this power, ATEM Constellation is extremely quiet with its innovative high-efficiency thermal system.
Alternative Portable Panel
The ATEM Micro Panel is a low-cost solution for adding panel control to ATEM Software control. Featuring the same high-end buttons as ATEM Advanced Panels you get a true broadcast-quality feel. It also has a familiar layout with buttons for program and preview. You can use the shift buttons to access up to 20 sources. There are 4 upstream and 2 downstream key buttons, plus a macro button. It even has 4 M/E buttons so you can control a massive 4 M/E switcher. There’s a fader for smooth manual transition control, which also means it’s low profile and very portable. With a connection via USB-C or Bluetooth and a large internal battery, the ATEM Micro Panel is perfect when you need a portable panel.
Get Industry Standard Professional Camera Control
The new ATEM Camera Control Panel provides 4 industry standard camera controllers for the same workflow as camera chains costing hundreds of thousands of dollars. Designed to be portable, the ATEM Camera Control Panel can be placed on a desktop or a slide-out rack shelf. All control commands are sent to the cameras using the SDI camera control protocol which is supported by cameras such as Blackmagic URSA Broadcast and Blackmagic Studio Cameras. You get dedicated controls including a CCU-style joystick and controls for RGB camera color, master gain, black, iris, and more. Plus all controls are arranged in a familiar broadcast layout perfect for both experienced and new operators.
Compatible with Blackmagic Cameras, Panels, Decks and More
ATEM switchers are powerful because they can grow and expand with you. Add an ATEM Advanced Panel to get professional industry standard switcher control. Then add an ATEM Camera Control Panel for fast control and color balancing of up to four cameras. For cameras, Blackmagic Studio Cameras make great studio cameras as they have tally, talkback, and control all built into the compact and very portable design. For mastering, Blackmagic HyperDeck Studio recorders are perfect because they include popular file formats such as ProRes, H.264, and DNx. You can even live stream using an UltraStudio or Blackmagic Web Presenter. Then add a Micro Converter SDI to HDMI 3G converter for HDMI monitoring.
