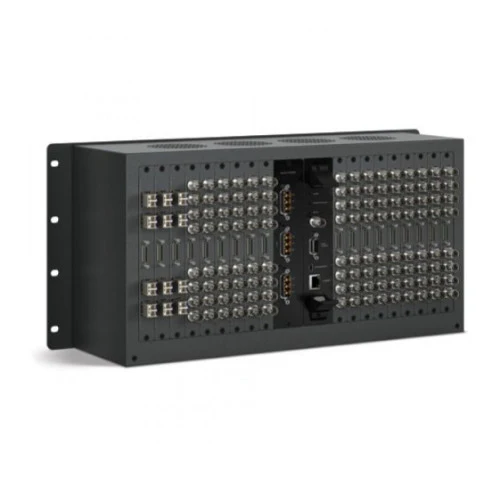

Blackmagic Design Universal Videohub 72
Universal Videohub lets you build your own broadcast quality 3 Gb/s SDI and optical fiber SDI router for SD, HD, 4:4:4 and 2K video formats. Every interface module in the router is card based, with each card featuring 4 inputs and 4 outputs. Mix and match interfaces and build a router with all SDI, all optical fiber SDI or a combination of both.
Amazing Routing Options
Universal Videohub is perfect for when you need to route SDI and optical fiber connections. Get incredible 3 Gb/s SDI routing, plus the ability to send and receive video signals over long distances using optical fiber. That’s great for use in larger facilities and for large scale events. Route directly from one SDI or optical fiber device to another, from SDI to optical fiber or vice versa. Only Universal Videohub lets you upgrade to a larger rack frame and protect your investment in interface cards and power supplies!
Innovative Features
Universal Videohub 72 lets you add up to 18 interface cards which is great for broadcast and post facilities with lots of equipment. You can hot swap interface cards while working live without the need to power down the router.
Intelligent Design
Universal Videohub models feature a frame-based design with the freedom to build a router to suit your needs. The design also integrates crosspoint and power redundancy and when you need to expand you can use the same interface cards in a larger frame.
Automatic SDI Switching
3 Gb/s SDI connections automatically switch between SD, HD, 4:4:4 and 2K video formats, so you can move the highest quality video between all your editing systems, decks, monitors and more. Simultaneously route copper SDI and optical fiber SDI signals in the same router.
Modular Interface Cards
Each SDI and optical fiber SDI interface card features 4 inputs and 4 outputs, plus a breakout cable port for deck control. The Universal Videohub Deck Control Cable breaks out to 4 separate RS-422 connections. SDI and optical fiber interface cards also support 16 channels of embedded SDI audio, so all the audio channels in your signal are routed together with the video.
Original: $2,845.00
-65%$2,845.00
$995.75Blackmagic Design Universal Videohub 72
Universal Videohub lets you build your own broadcast quality 3 Gb/s SDI and optical fiber SDI router for SD, HD, 4:4:4 and 2K video formats. Every interface module in the router is card based, with each card featuring 4 inputs and 4 outputs. Mix and match interfaces and build a router with all SDI, all optical fiber SDI or a combination of both.
Amazing Routing Options
Universal Videohub is perfect for when you need to route SDI and optical fiber connections. Get incredible 3 Gb/s SDI routing, plus the ability to send and receive video signals over long distances using optical fiber. That’s great for use in larger facilities and for large scale events. Route directly from one SDI or optical fiber device to another, from SDI to optical fiber or vice versa. Only Universal Videohub lets you upgrade to a larger rack frame and protect your investment in interface cards and power supplies!
Innovative Features
Universal Videohub 72 lets you add up to 18 interface cards which is great for broadcast and post facilities with lots of equipment. You can hot swap interface cards while working live without the need to power down the router.
Intelligent Design
Universal Videohub models feature a frame-based design with the freedom to build a router to suit your needs. The design also integrates crosspoint and power redundancy and when you need to expand you can use the same interface cards in a larger frame.
Automatic SDI Switching
3 Gb/s SDI connections automatically switch between SD, HD, 4:4:4 and 2K video formats, so you can move the highest quality video between all your editing systems, decks, monitors and more. Simultaneously route copper SDI and optical fiber SDI signals in the same router.
Modular Interface Cards
Each SDI and optical fiber SDI interface card features 4 inputs and 4 outputs, plus a breakout cable port for deck control. The Universal Videohub Deck Control Cable breaks out to 4 separate RS-422 connections. SDI and optical fiber interface cards also support 16 channels of embedded SDI audio, so all the audio channels in your signal are routed together with the video.
