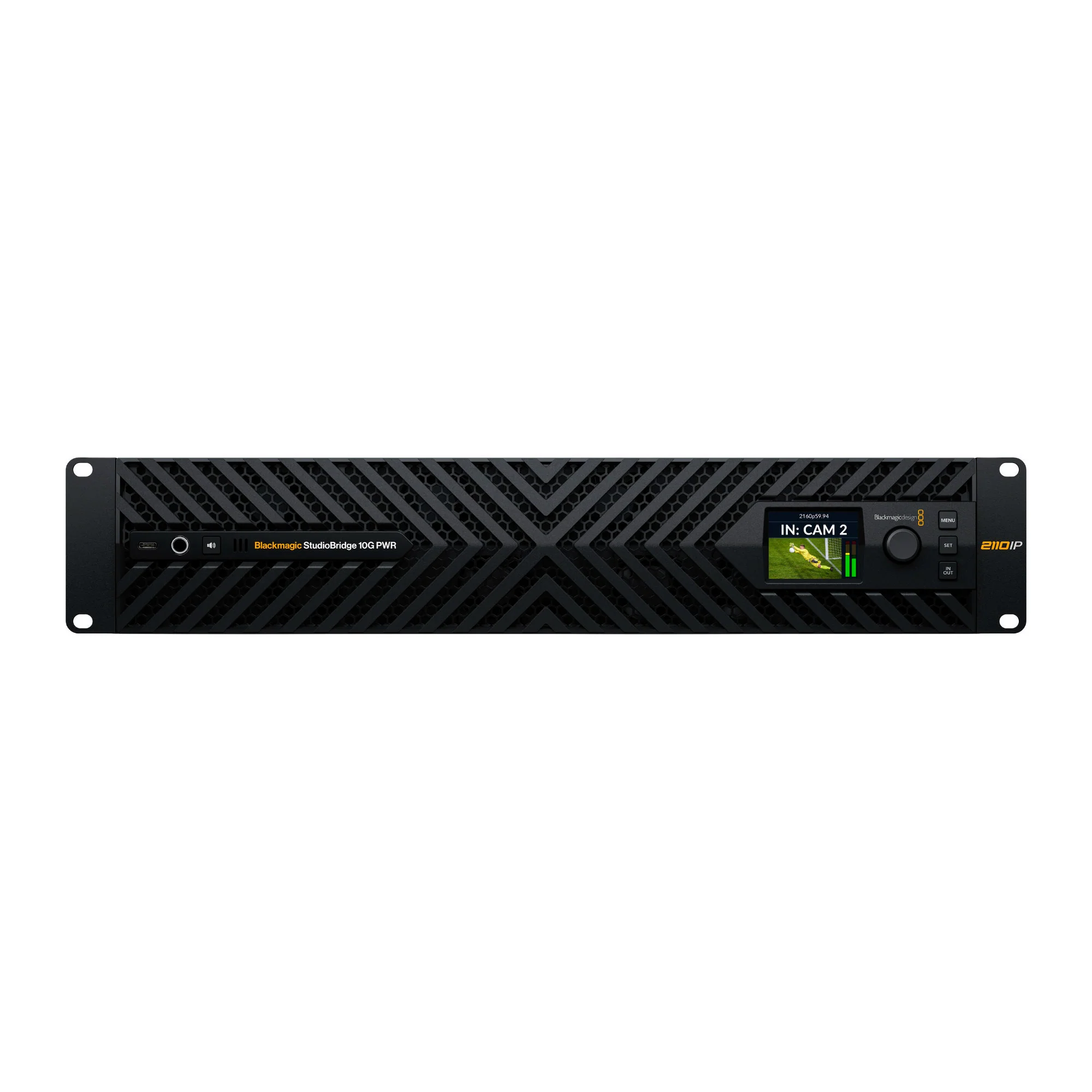

Blackmagic Design StudioBridge 10G PWR with 8-Channel 4K60 IP Video Bridge and Dual 100GbE (Black)

The Blackmagic Design StudioBridge 10G PWR is a professional-grade IP video bridge engineered for high-end broadcast and live production workflows. It seamlessly converts up to eight 10GbE SMPTE 2110 video streams into dual redundant 100GbE outputs, enabling reliable, high-bandwidth signal transport. Designed in a compact 2 RU rackmount form, it supports 4K60 10-bit video, embedded multi-channel audio, and PoE++ connectivity for streamlined deployment. With built-in monitoring, external control options, and redundant power inputs, it delivers the performance and reliability required for mission-critical IP video infrastructures.

8-Channel 4K60 Video Conversion

Supports up to eight independent SMPTE 2110 IP video streams at resolutions up to 4K60 with 10-bit 4:2:2 color for high-quality broadcast output.

8 x 10GbE Inputs with PoE++ (90W)

Each RJ45 input provides up to 90W of PoE++, allowing direct connection and power delivery to compatible devices using a single cable.

Dual 100GbE Redundant Outputs

Equipped with two QSFP28 100GbE outputs supporting SMPTE 2022-7 redundancy for uninterrupted and fail-safe signal transmission.

SMPTE 2110 Compliance

Fully compatible with SMPTE 2110-20, 2110-21, 2110-30, and 2110-40 standards, ensuring seamless integration into modern IP-based broadcast systems.

Integrated LCD Monitoring and Controls

Features a 2.2-inch front-panel LCD with control knob and buttons for real-time monitoring of video, audio, and system status.

External Control Connectivity

Supports remote configuration and updates via RJ45 (NMOS control) and USB-C interface for flexible system management.

16 Channels of Embedded Audio per Input

Each video input supports up to 16 channels of embedded audio, providing comprehensive audio handling for complex productions.

Built-In Audio Monitoring

Includes a headphone jack and internal speaker for convenient on-device audio confidence monitoring.

2 RU Rackmount Design

Compact and efficient 2 RU form factor, ideal for professional rack installations in studios and broadcast facilities.

Dual Redundant Power Inputs

Dual AC inputs ensure continuous operation with power redundancy for critical production environments.
